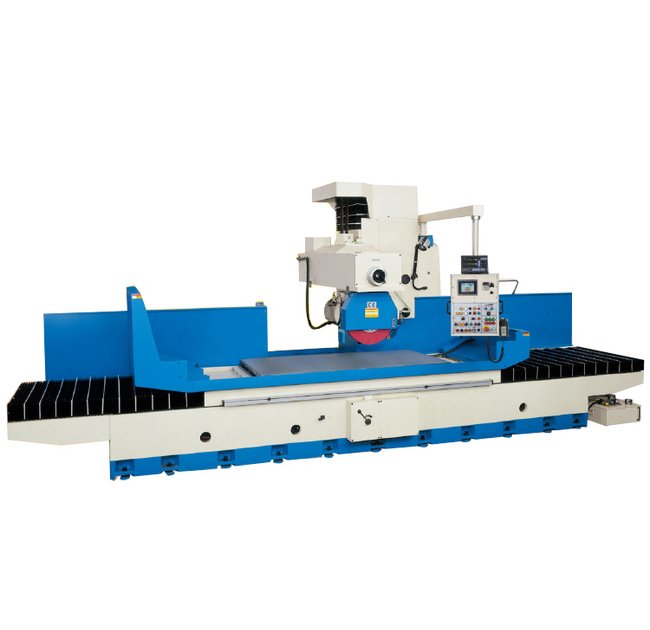

Supertec® Over Arm Surface Grinder
Supertec® Over Arm Surface Grinder
SKU:OVE-878321
High-precision industrial surface grinder with 15-25 hp motor power and 98.4'' grinding length. Standard and optional accessories for versatile machining solutions.
Regular price
$74,999.00
Regular price
Sale price
$74,999.00
Unit price
per
Initiate Order
Supertec® Over Arm Surface Grinder
$74,999.00
Quantity: 1
Claim Your Seller Account
Supertec® Over Arm Surface Grinder
$74,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Supertec® Over Arm Surface Grinder is a high-precision grinding machine designed for industrial applications. With a robust 15-25 hp spindle motor power and a maximum grinding length of 98.4 inches, this grinder offers unparalleled accuracy and efficiency. Equipped with standard accessories including a coolant system, tools with box, and a hydrostatic system, it ensures smooth operation and extended durability. Optional accessories like the vertical spindle grinding equipment and variable speed spindle provide versatility to meet diverse machining needs. Manufacturer reserves the right to improve specifications without notice.
Product Specifications
Note 0
Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
31680 lb
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
2590 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Down Feed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Down Feed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
110 in
Specifications Floor Height Optional
118 in
Specifications Floor Length
315 in
Specifications Floor Width
122 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
16 in
Specifications Grinding Wheel Outside Diameter Optional
16 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power
7.5 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
33.86 in
Specifications Maximum Distance Between Spindle Center To Table
31.5 in
Specifications Maximum Distance Between Spindle Center To Table
39.4 in
Specifications Maximum Grinding Length
98.4 in
Specifications Maximum Grinding Width
31.5 in
Specifications Maximum Longitudinal Travel
104.3 in
Specifications Maximum Workpiece On Chuck
4400 lb
Specifications Spindle Motor Power
15 hp
Specifications Spindle Motor Power Optional
25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
106.4 in
Specifications Table Clamping Surface Width
32 in
Specifications Total Motor Power
24 hp | 34 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
