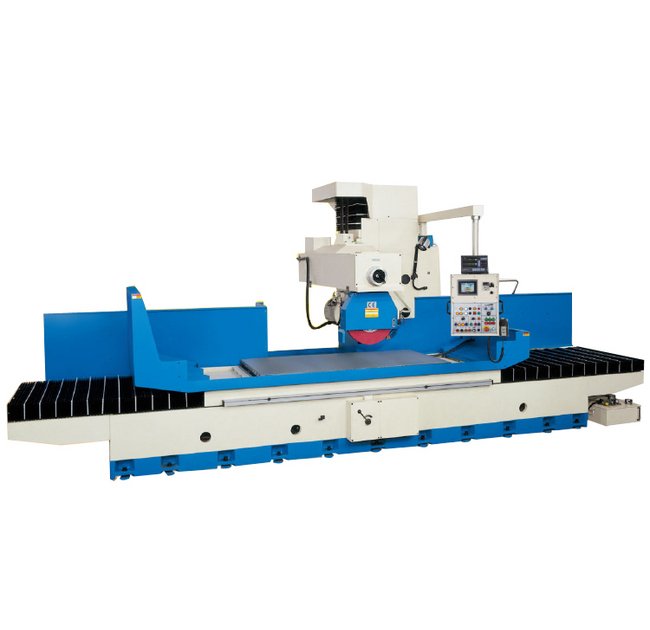

The Supertec® Over Arm Surface Grinder is a precision-engineered machine designed for efficient grinding operations. With extensive specifications like a Table Clamping Surface of 32x126 inches, Maximum Longitudinal Travel of 124 inches, and a robust 15 HP Spindle Motor Power, this grinder ensures exceptional performance. Equipped with standard accessories including Grinding Wheels, Coolant System, and Tools, it offers a comprehensive grinding solution for industrial applications. Compliant with Federal/DoD procurement standards, this grinder meets the highest quality requirements for government and institutional buyers.
Product Specifications
Note 0
Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
35200 lb
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
3100 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Down Feed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Down Feed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
110 in
Specifications Floor Height Optional
118 in
Specifications Floor Length
362 in
Specifications Floor Width
122 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
16 in
Specifications Grinding Wheel Outside Diameter Optional
16 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power
7.5 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
33.86 in
Specifications Maximum Distance Between Spindle Center To Table
31.5 in
Specifications Maximum Distance Between Spindle Center To Table
39.4 in
Specifications Maximum Grinding Length
118 in
Specifications Maximum Grinding Width
31.5 in
Specifications Maximum Longitudinal Travel
124 in
Specifications Maximum Workpiece On Chuck
4400 lb
Specifications Spindle Motor Power
15 hp
Specifications Spindle Motor Power Optional
25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
126 in
Specifications Table Clamping Surface Width
32 in
Specifications Total Motor Power
24 hp | 34 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
