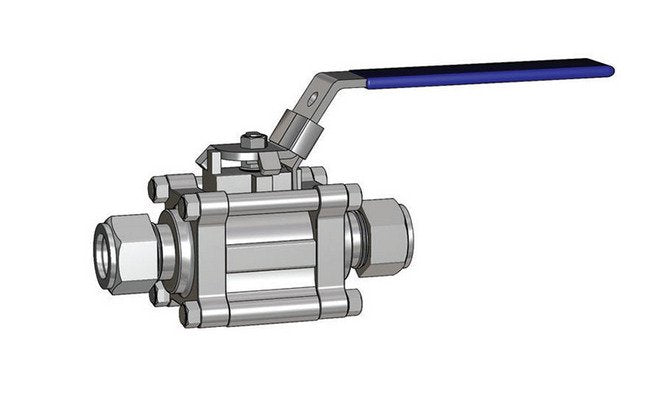

SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice & 12mm SUPERLOK® End Connections
SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice & 12mm SUPERLOK® End Connections
SKU:SWB-23c233
High-performance SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice & 12mm SUPERLOK®. Ideal for industrial applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice & 12mm SUPERLOK® End Connections
$159.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice & 12mm SUPERLOK® End Connections
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve features a precise 0.411 inch orifice size and robust 12mm SUPERLOK® end connections, ideal for high-pressure applications up to 3000 psig. With a temperature rating from -20 to 450 °F, this valve ensures reliable performance in diverse environments. Each valve undergoes stringent nitrogen and hydrostatic testing, guaranteeing quality and safety. Versatile and durable, this ball valve is a top choice for both consumer and institutional buyers seeking exceptional reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

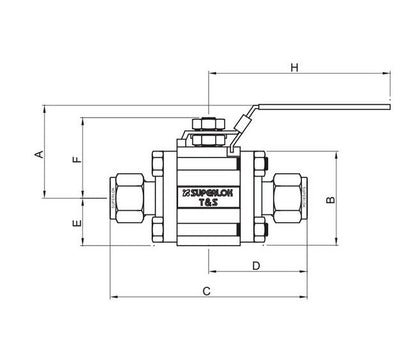

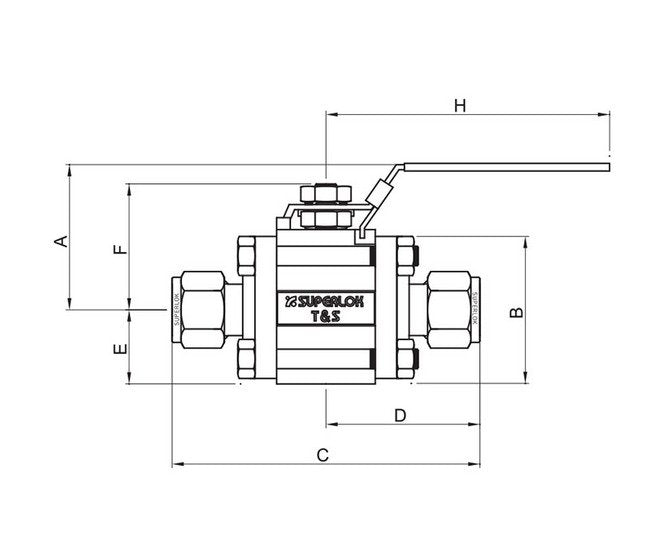

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
103.8 mm
Technical Specs Dimension D
51.90 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
12 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
7.5
Technical Specs Orifice Size
10.4 mm | 0.411 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
