Tanis® 120 Grit Fine Blanking Disc Brush
Tanis® 120 Grit Fine Blanking Disc Brush
SKU:ABR-abeef0
Achieve precise, efficient surface finishing with Tanis® 120 Grit Fine Blanking Disc Brush, compatible with European machines.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 120 Grit Fine Blanking Disc Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 120 Grit Fine Blanking Disc Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

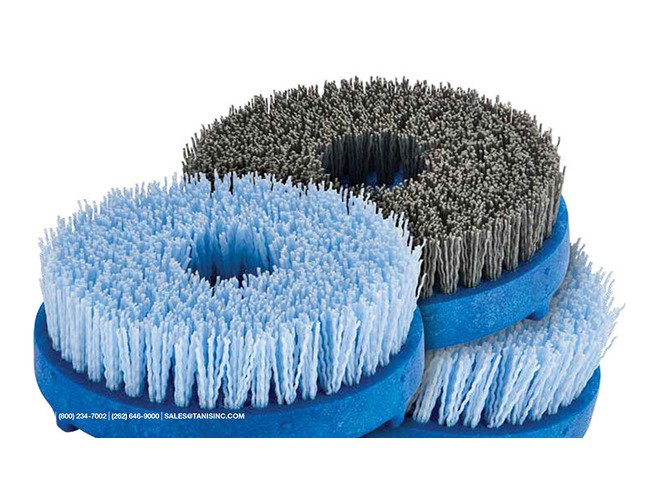

The Tanis® 120 Grit Fine Blanking Disc Brush is specially designed for stationary finishing machines, compatible with European machines for deburring, edge radiusing, and polishing applications. With a 0.040 in filament diameter and 25 mm trim length, this brush ensures precise and efficient surface finishing. Made of high-quality Silicon Carbide, it guarantees durability and performance for industrial needs. Additional diameters and grits are available upon request.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
25 mm
Specifications Block Thickness
1 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.040 in
Specifications Material
Silicon Carbide
Specifications Maximum Speed
3000 rpm
Specifications Peripheral Angular Speed
23.6 rpm
Specifications Size
120 grit
Specifications Trim Length
25 mm
