Tanis® 4 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
Tanis® 4 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
SKU:ABR-dde495
Achieve precise deburring and finishing with Tanis® 4 Inch Metal Hub Wheel Brush, featuring Silicon Carbide filament.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 4 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 4 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

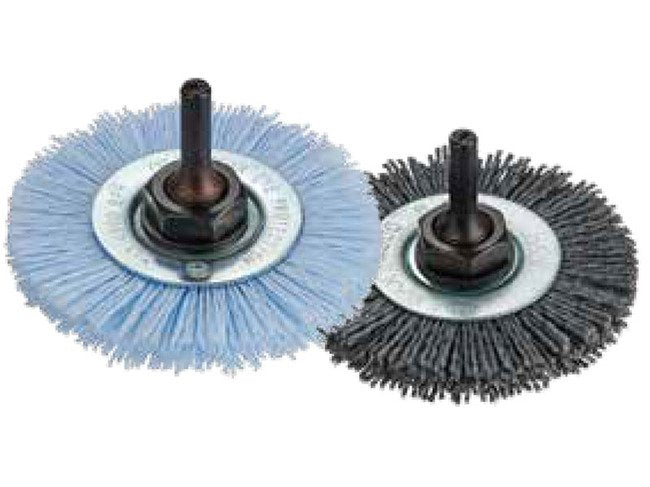

The Tanis® 4 Inch Metal Hub Wheel Brush features a 180 grit abrasive, 0.035 inch filament diameter made of Silicon Carbide. Designed for industrial applications, it offers consistency in manufacturing processes and high-temperature usage thanks to its galvanized steel hub. Ideal for deburring keyways, gear splines, and honing cylindrical bores, this brush ensures high-quality finishing for ferrous metals. Compatible with Wheel Brush Adapter Plates for CNC machines, it streamlines automated deburring operations.
Product Specifications
Accessories

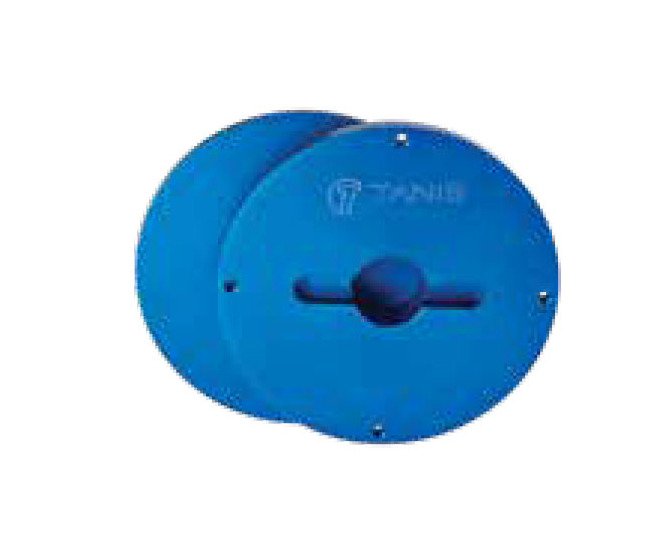

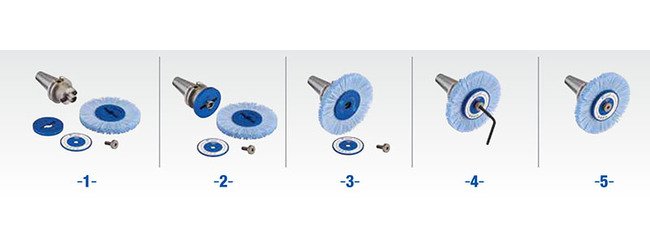

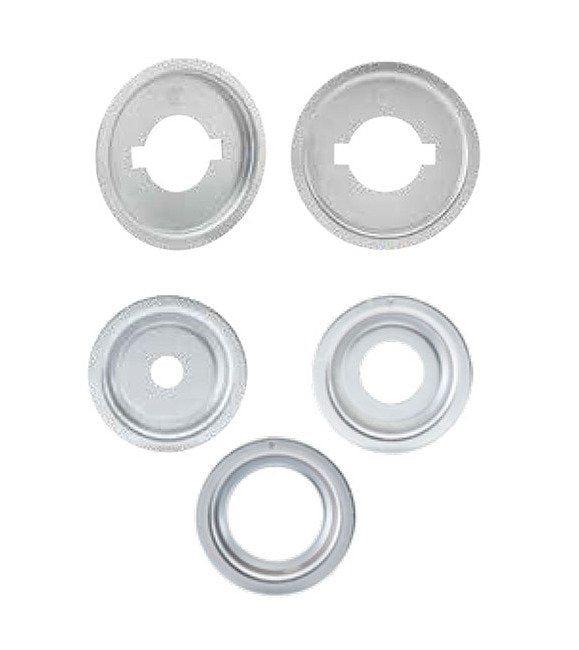

Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35900Face Width - StandardBrush Inside Diameter (ID) - 3/4 in.Pilot - 3/4 in.
Applications
Deburring Keyways, Slots and Machine Grooves in PartsDeburring Gear SplinesHoning and Finishing of Cylindrical BoresEdge RadiusingDeburring Seal Grooves in Turbine Engine Cases and Small Aerospace Parts
Benefits
Consistency in Manufacturing ProcessHigh Quality and Low CostMetal Hub Allows for High Temperature UseManual Operations
Industries
MachiningCastingMetal FinishingMachining CentersManual Operations
Note

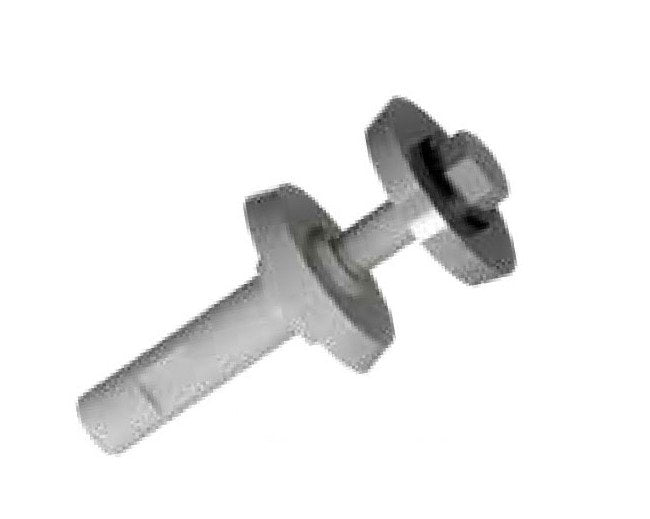

Drive arbors are available for collet mounting applications.
Specifications Arbor Hole Size
1/2 to 5/8 in
Specifications Brush Diameter
4 in
Specifications Face Width
0.500 in
Specifications Filament
Silicon Carbide
Specifications Filament Diameter
0.035 in
Specifications Hub Material
Galvanized Steel
Specifications Maximum Speed
4500 rpm
Specifications Size
180 grit
Specifications Trim Length
0.850 in
