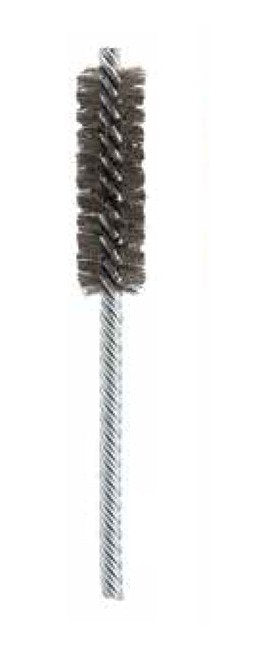

Tanis® 5/8 Inch Stainless Steel Twisted Power Tube Brush
Tanis® 5/8 Inch Stainless Steel Twisted Power Tube Brush
SKU:TWI-69562c
Achieve exceptional cleaning with Tanis® 5/8 Inch Stainless Steel Brush - durable, precise, and efficient.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Tanis® 5/8 Inch Stainless Steel Twisted Power Tube Brush
$24.99
Quantity: 1
Claim Your Seller Account
Tanis® 5/8 Inch Stainless Steel Twisted Power Tube Brush
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet heavy-duty cleaning needs with the Tanis® 5/8 Inch Stainless Steel Twisted Power Tube Brush. Perfect for polishing, blending, burr removal, and cleaning with a double stem, double spiral design. Features a 0.005-inch filament diameter and twisted construction for strength and density. Safe operating speeds from 100-500 RPM. Ensure precise brush rotation alignment for optimal performance. Explore various wire and filament options for versatile applications.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
5/8 in
Specifications Brush Length
2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.005 in
Specifications Fill Material
Stainless Steel
Specifications Overall Length
5 in
Specifications Stem Diameter
0.208 in
Twisted Brush Stem Construction
Filament is twisted between four stem wires, with two stem wires on each side for additional strength and higher density fill.
