Tanis® CeramiX® 10in Shell Mill Holder Disc Brush - 80 Grit
Tanis® CeramiX® 10in Shell Mill Holder Disc Brush - 80 Grit
SKU:ABR-c1c18f
Achieve precision deburring & finishing with Tanis® CeramiX® 10in Shell Mill Disc Brush - 80 Grit. Ideal for CNC machines.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Tanis® CeramiX® 10in Shell Mill Holder Disc Brush - 80 Grit
$69.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 10in Shell Mill Holder Disc Brush - 80 Grit
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

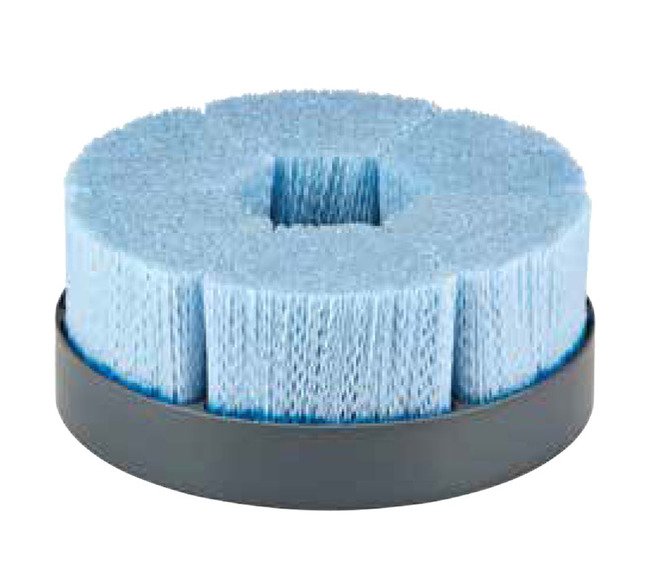

The Tanis® CeramiX® 10-inch Shell Mill Holder Disc Brush with 80 grit and 0.055-inch filament diameter is designed for exceptional deburring and finishing performance on flat surfaces like machinery parts. Featuring a built-in keyway for easy mounting on shell mill holders in CNC machines, this brush ensures superior dimensional precision and a smooth metal finish. Ideal for blending rough edges and removing imperfections, it offers aggressive action and high bristle density for efficient deburring and finishing applications.
Product Specifications
Accessories

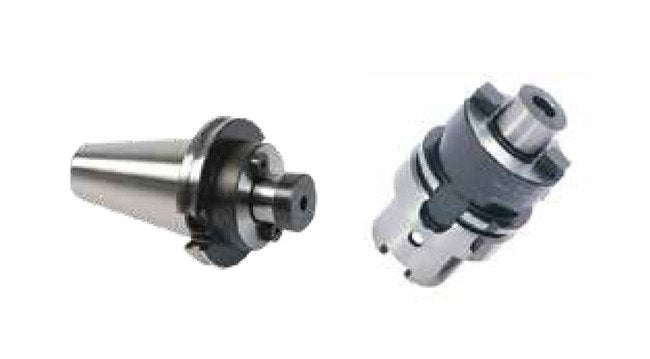

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35070For Brush Diameter - 10 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35094For Brush Diameter - 10 in.Ring Inside Diameter (ID) - 9 in.Ring Outside Diameter (OD) - 9-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
10 in
Specifications Filament Diameter
0.055 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
