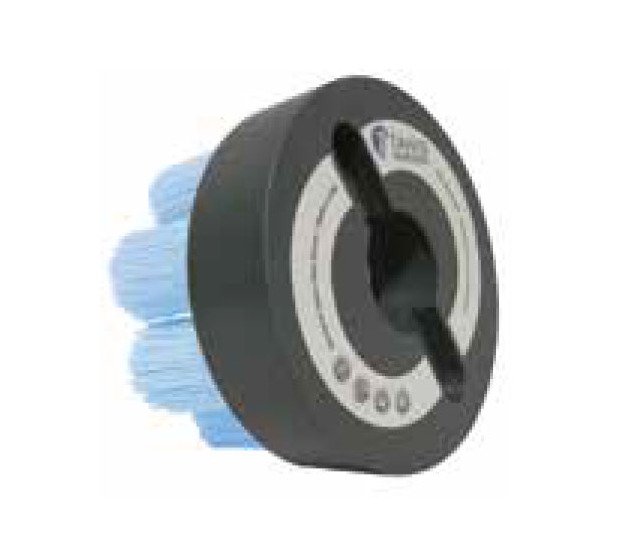

Tanis® CeramiX® 4 Inch Shell Mill Disc Brush, 120 Grit
Tanis® CeramiX® 4 Inch Shell Mill Disc Brush, 120 Grit
SKU:ABR-8ad871
Achieve precision deburring and improved surface finish with Tanis® CeramiX® 4 Inch Shell Mill Disc Brush, 120 Grit. Ideal for CNC machining.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Tanis® CeramiX® 4 Inch Shell Mill Disc Brush, 120 Grit
$39.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 4 Inch Shell Mill Disc Brush, 120 Grit
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision and surface finish with Tanis® CeramiX® 4 Inch Shell Mill Disc Brush featuring 120 grit CeramiX® filament. Ideal for deburring and blending rough edges on machined parts. Designed for CNC machining centers with built-in keyway for easy mounting.
Product Specifications
Accessories

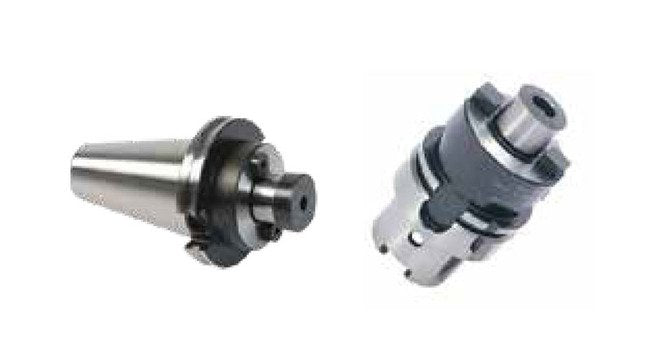

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 4 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35086For Brush Diameter - 4 in.Ring Inside Diameter (ID) - 3-1/4 in.Ring Outside Diameter (OD) - 3-5/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern

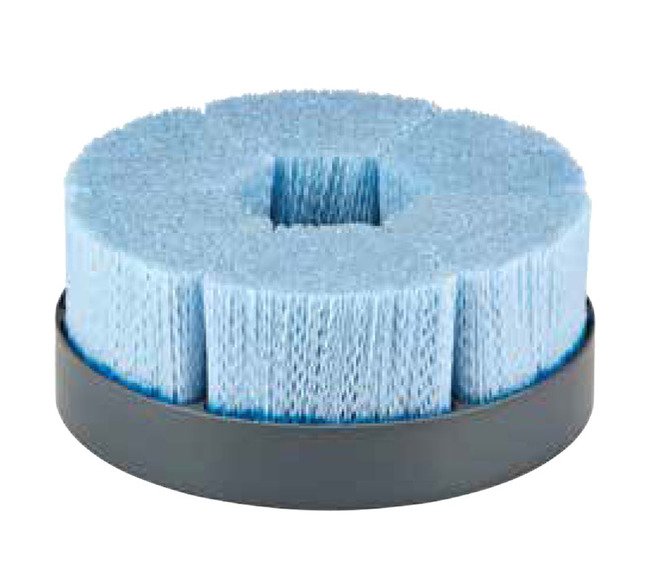

Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
4 in
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
