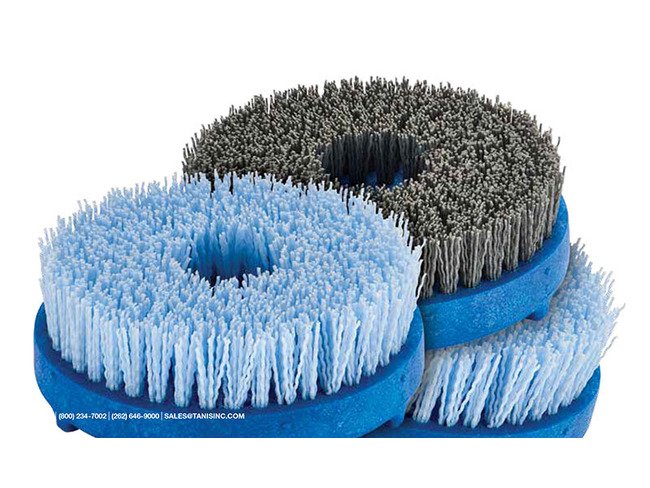

Tanis® Fine Blanking Disc Brush, 120 Grit, 0.040in Filament, 36mm Trim
Tanis® Fine Blanking Disc Brush, 120 Grit, 0.040in Filament, 36mm Trim
SKU:ABR-ab9989
Achieve flawless finishes with Tanis® 120 Grit Fine Blanking Disc Brush for precise deburring and polishing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® Fine Blanking Disc Brush, 120 Grit, 0.040in Filament, 36mm Trim
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® Fine Blanking Disc Brush, 120 Grit, 0.040in Filament, 36mm Trim
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tanis® 120 Grit Fine Blanking Disc Brush is meticulously designed for stationary finishing machines, catering to European standards like Volbhag, Niederberger, and Peter Wolters. Perfect for deburring, edge radiusing, and polishing machined surfaces, this brush ensures precise results. With a Filament Diameter of 0.040 inches and a Trim Length of 36 millimeters, it guarantees efficient performance. Experience superior quality and durability with this Silicon Carbide brush.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
25 mm
Specifications Block Thickness
1 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.040 in
Specifications Material
Silicon Carbide
Specifications Maximum Speed
3000 rpm
Specifications Peripheral Angular Speed
23.6 rpm
Specifications Size
120 grit
Specifications Trim Length
36 mm
