Tanis CeramiX® 6 Inch Shell Mill Disc Brush, 120 Grit
Tanis CeramiX® 6 Inch Shell Mill Disc Brush, 120 Grit
SKU:ABR-97adcd
Achieve precise metal finish with Tanis CeramiX® 6 Inch Shell Mill Disc Brush, designed for dimensional accuracy and exceptional abrasive action.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Tanis CeramiX® 6 Inch Shell Mill Disc Brush, 120 Grit
$49.99
Quantity: 1
Claim Your Seller Account
Tanis CeramiX® 6 Inch Shell Mill Disc Brush, 120 Grit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

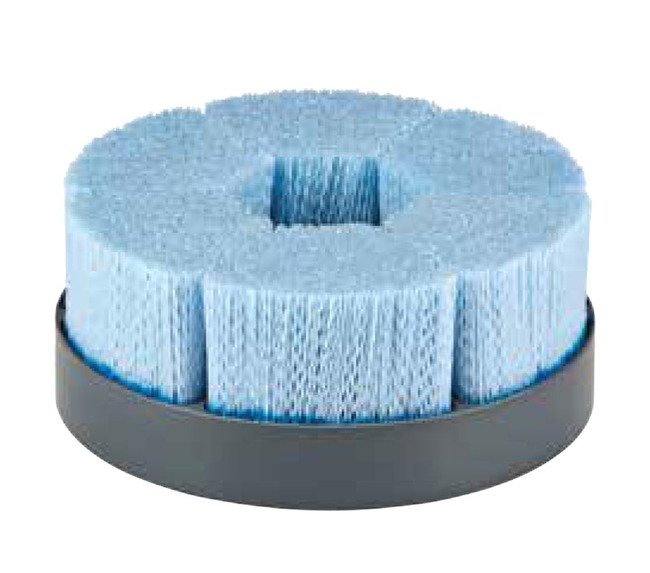

The Tanis CeramiX® 6 Inch Shell Mill Holder Disc Brush with 120 Grit is designed for superior dimensional precision in deburring and finishing applications. Featuring Tanis® brand quality and a 0.040 in filament diameter, this brush is ideal for improving metal finish on machined surfaces and blending rough edges on parts. With a built-in keyway for easy mounting on standard shell mill holders, this brush is a reliable choice for CNC machining centers, ensuring efficiency and consistency in surface preparation.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note

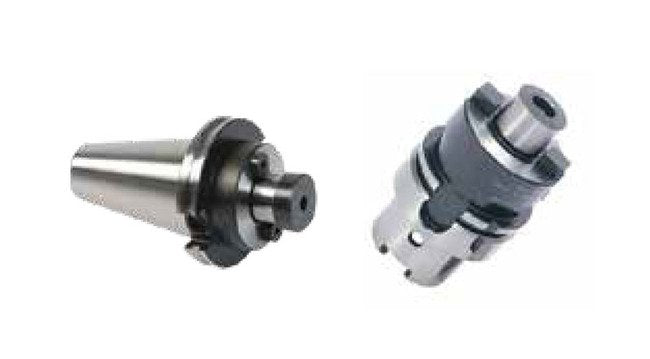

Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
