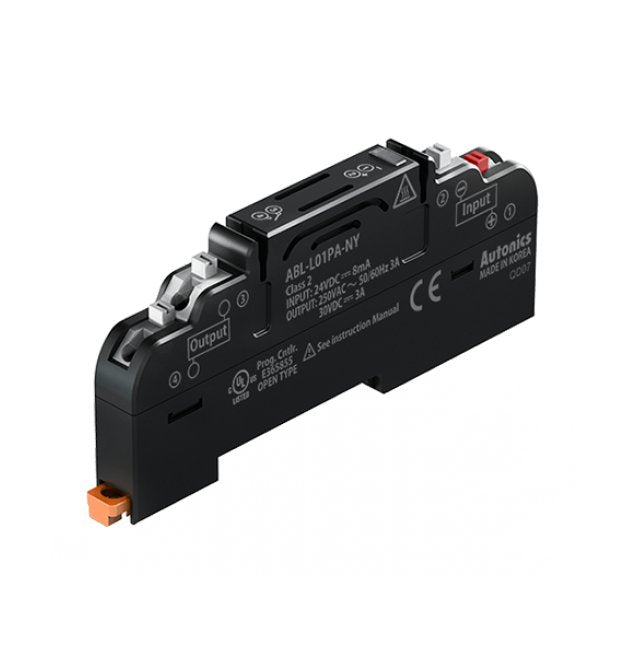

Temperature Input/Output Terminal Block -15 to 55 ºC
Temperature Input/Output Terminal Block -15 to 55 ºC
SKU:PRO-adad81
Robust terminal block with -15 to 55 ºC operation, PNP input, Varistor protection, and Blue LED indicator.
Regular price
$18.95
Regular price
Sale price
$18.95
Unit price
per
Initiate Order
Temperature Input/Output Terminal Block -15 to 55 ºC
$18.95
Quantity: 1
Claim Your Seller Account
Temperature Input/Output Terminal Block -15 to 55 ºC
$18.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Temperature Input/Output Terminal Block is a reliable solution for environmental control applications, featuring a PNP input, Varistor installed design for enhanced protection. With an operating range of -15 to 55 ºC, this terminal block offers a rated current of 3A and meets European Conformity and cULus Listed standards. Crafted with Brass conducting plates and Polyamide 66 terminal block material, this product ensures durability and long-term performance. The inclusion of a Blue LED operation indicator and Ingress Protection (IP) 20 structure further enhances usability in diverse settings.
Product Specifications
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
138 g
Specifications Approximate Weight
21 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
18.95 USD
Specifications Note For Terminal Pitch
Arranging over 2 units
Specifications Number Of Relay Points
1-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
9.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
