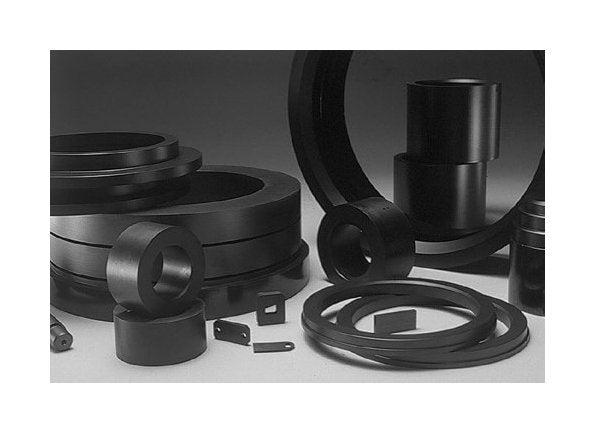

• Torlon® 4203 PAI Round Bar - Image 1
1 1
Trident Plastics, Inc. →

Torlon® 4203 PAI Round Bar

Torlon® 4203 PAI Round Bar

SHA-6c5947

High-performance Torlon® 4203 PAI Round Bar with exceptional strength and thermal stability. Ideal for high-temp electrical applications.

$35.99
$35.99
Sale

Initiate Order

Torlon® 4203 PAI Round Bar

Torlon® 4203 PAI Round Bar

$35.99

Quantity: 1

Claim Your Seller Account

Torlon® 4203 PAI Round Bar

Torlon® 4203 PAI Round Bar

$35.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Torlon® 4203 PAI Round Bar is a high-performance polyamide-imide material designed to excel in extreme conditions. With a specific gravity of 1.41, this round bar exhibits exceptional tensile strength of 20000 psi and a flexural modulus of 600000 psi. It maintains stiffness up to 500ºF, making it ideal for high temperature electrical connectors and other demanding applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Applications
High temperature electrical connectors.Chip nests & sockets.Can mandrel
Characteristics Characteristics
Maintains strength & stiffness to 500ºF.Minimal expansion rate to 500ºF.Able to endure harsh thermal, chemical and stress conditions.
Specifications Availability
3-5 days
Specifications Coefficient Of Friction Static
0.35
Specifications Color
Brown/Yellow
Specifications Compressive Modulus
479000 psi
Specifications Compressive Strength
23900 psi
Specifications Dielectric Strength
580 V/mil
Specifications Flammability At 125 Ul94
V0
Specifications Flexural Modulus
600000 psi
Specifications Flexural Strength
23900 psi
Specifications Glass Transition Temperature
527 ºF
Specifications Hardness Rockwell
E80 / M120
Specifications Heat Deflection Temperature 264 Psi
532 ºF
Specifications Izod Impact Strength Notched Astm D256
2.0
Specifications Material
PAI
Specifications Minimum Order
1
Specifications Optional Lengths
1'
Specifications Specific Gravity
1.41
Specifications Standard Length
4' ft
Specifications Tensile Elongation Break
10%
Specifications Tensile Modulus
600000 psi
Specifications Tensile Strength
20000 psi
Specifications Tolerance
+only in
Specifications Water Absorption 24 Hrs
0.40 %
Specifications Water Absorption Saturation Astm D570
1.70
