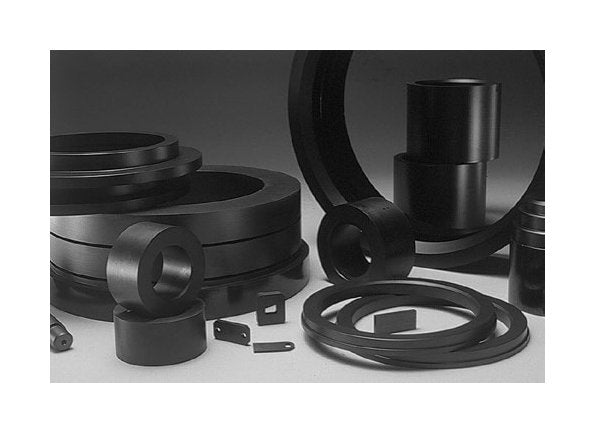

Torlon® 4203 Polyamide-imide Sheet
Torlon® 4203 Polyamide-imide Sheet
SKU:SHA-62862f
High-performance Torlon® 4203 sheet with exceptional strength, heat resistance up to 532ºF, and minimal water absorption. Ideal for high temperature electrical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Torlon® 4203 Polyamide-imide Sheet
$129.99
Quantity: 1
Claim Your Seller Account
Torlon® 4203 Polyamide-imide Sheet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Torlon® 4203 Polyamide-imide Sheet is a high-performance material designed for demanding applications. With a thickness of 0.500 in and a sheet size of 12 x 12 in, this sheet offers exceptional strength, stiffness, and heat resistance up to 532 ºF. Its attributes include a tensile strength of 20000 psi, compressive strength of 23900 psi, and minimal water absorption. Ideal for high temperature electrical connectors and chip nests, this sheet excels in harsh thermal, chemical, and stress conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
High temperature electrical connectors.Chip nests & sockets.Can mandrel
Characteristics Characteristics
Maintains strength & stiffness to 500ºF.Minimal expansion rate to 500ºF.Able to endure harsh thermal, chemical and stress conditions.
Specifications Availability
3-5 days
Specifications Coefficient Of Friction Static
0.35
Specifications Color
Brown/Yellow
Specifications Compressive Modulus
479000 psi
Specifications Compressive Strength
23900 psi
Specifications Dielectric Strength
580 V/mil
Specifications Flammability At 125 Ul94
V0
Specifications Flexural Modulus
600000 psi
Specifications Flexural Strength
23900 psi
Specifications Glass Transition Temperature
527 ºF
Specifications Hardness Rockwell
E80 / M120
Specifications Heat Deflection Temperature 264 Psi
532 ºF
Specifications Izod Impact Strength Notched Astm D256
2.0
Specifications Material
PAI
Specifications Minimum Order
1
Specifications Optional Sheet Size
12 x 48
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.41
Specifications Tensile Elongation Break
10%
Specifications Tensile Modulus
600000 psi
Specifications Tensile Strength
20000 psi
Specifications Thickness
0.500 in
Specifications Tolerance
+only in
Specifications Water Absorption 24 Hrs
0.40 %
Specifications Water Absorption Saturation Astm D570
1.70
Specifications Weight
3.67 lb/ft²
