Type MTC - Liquid-Tight Flexible Metal Conduit (LFMC)
Type MTC - Liquid-Tight Flexible Metal Conduit (LFMC)
Versatile Type MTC Liquid-Tight Flexible Metal Conduit (LFMC) for superior cable protection in wiring applications.
Initiate Order
Type MTC - Liquid-Tight Flexible Metal Conduit (LFMC)
$349.99
Claim Your Seller Account
Type MTC - Liquid-Tight Flexible Metal Conduit (LFMC)
$349.99
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

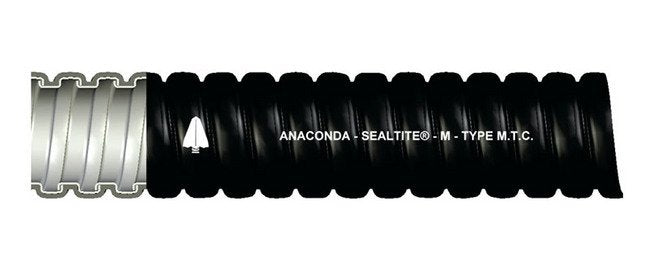

The Type MTC Liquid-Tight Flexible Metal Conduit (LFMC) offers a reliable solution for wiring applications, featuring a thermoplastic PVC jacket and continuously interlocked hot-dipped zinc galvanized steel core. This conduit delivers a flexible, liquid-tight raceway for wiring, ensuring superior protection without the need for agency approvals. With an IP 67 rating when paired with approved connectors, it is suitable for a wide range of applications. The conduit is highly durable and resistant to sunlight, making it ideal for machine centers and robotics. Designed for ease of installation, it is compatible with standard liquid-tight connectors and is certified with industry standards like RoHS and WEEE.
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
30 lbs | 13.61 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89232 | MTLT | MTLT-1 | VJC-13
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
400 ft | 121.92 m
Specifications Outside Diameter
1.228 to 1.258 in | 31.191 to 31.953 mm
Specifications Packaging
Small Reels
Specifications Type
MTC
