Typhoon Hydraulic Drive Double Shaft Shredder | Vecoplan®
Typhoon Hydraulic Drive Double Shaft Shredder | Vecoplan®
SKU:TYP-72fd33
Efficiently manage bulky waste with the Vecoplan® Typhoon Hydraulic Drive Double Shaft Shredder. Tailored cutting designs and high torque make it ideal for robust waste processing.
Regular price
$29,800.00
Regular price
Sale price
$29,800.00
Unit price
per
Initiate Order
Typhoon Hydraulic Drive Double Shaft Shredder | Vecoplan®
$29,800.00
Quantity: 1
Claim Your Seller Account
Typhoon Hydraulic Drive Double Shaft Shredder | Vecoplan®
$29,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

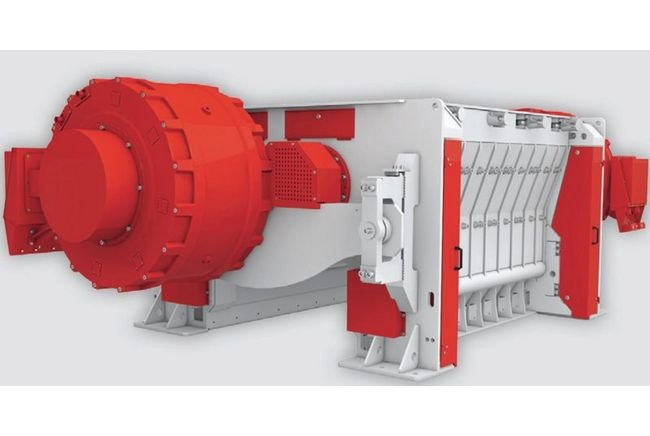

The Typhoon Hydraulic Drive Double Shaft Shredder by Vecoplan® is a robust solution for efficiently handling bulky waste, timber, and production waste in diverse settings. With a versatile drive power of 250 hp and a hydraulically-operated design, this shredder offers unparalleled performance with its two rotors and high centrifugal mass. Customizable with four cutting unit designs and featuring a nominal torque of up to 55,000 N·m, this shredder ensures precision and reliability. Perfect for demanding applications, the Typhoon shredder sets the standard for industrial shredding equipment.
Product Specifications
Specifications Drive Power
250 hp
Specifications Drive Type
Hydraulic
Specifications Features
Four different cutting unit designs available for optimal adjustment to input material | Nominal torques up to 55.000 N·m | Rotor speed can be choosen without limits, depending on provided drive system between 0 and 85 rpm | Rotors with high centrifugal mass allow smooth machine operation | Two drives with powerful torque, hydraulical or patented HiTorc® drive

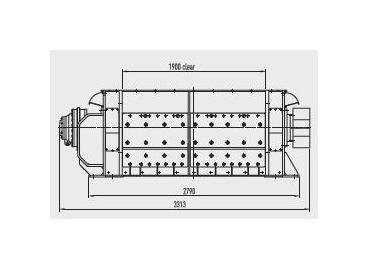

Specifications Height
61 in
Specifications Infeed Opening Length
75 in
Specifications Infeed Opening Width
66 in
Specifications Length
125 in
Specifications Nominal Torque
0 to 55.000 N·m
Specifications Number Of Drives
1
Specifications Number Of Rotors
2
Specifications Rotor Diameter
25 to 30 in
Specifications Rotor Length
75 in
Specifications Rotor Speed
0 to 45 rpm
Specifications Weight
16 ton
Specifications Width
96 in
