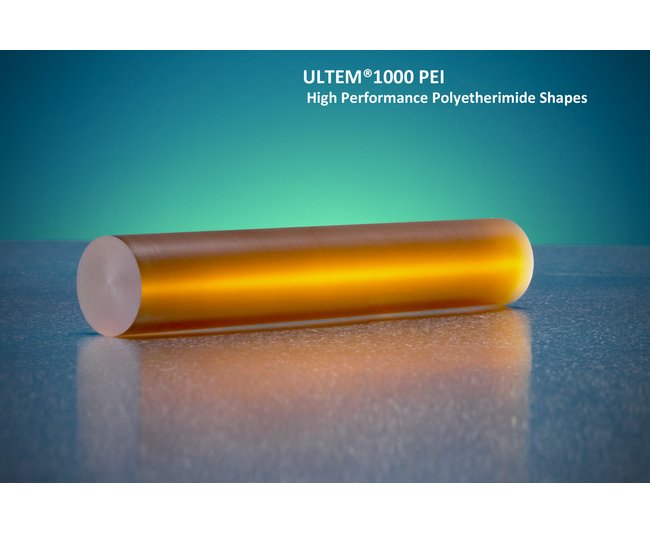

• ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic - Image 1

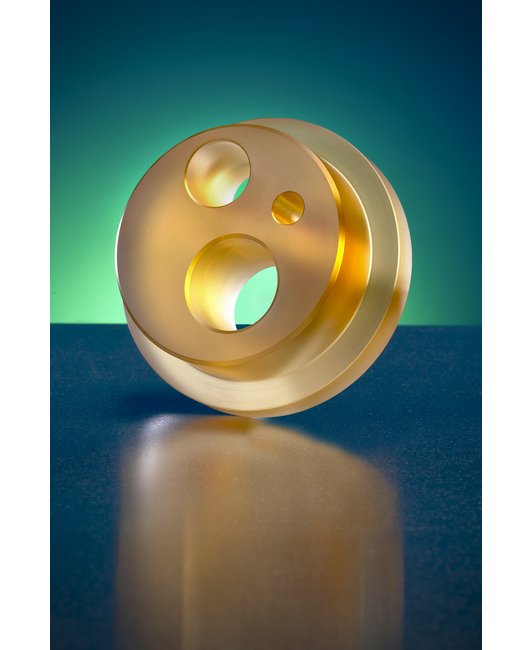

  • ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic - Image 2

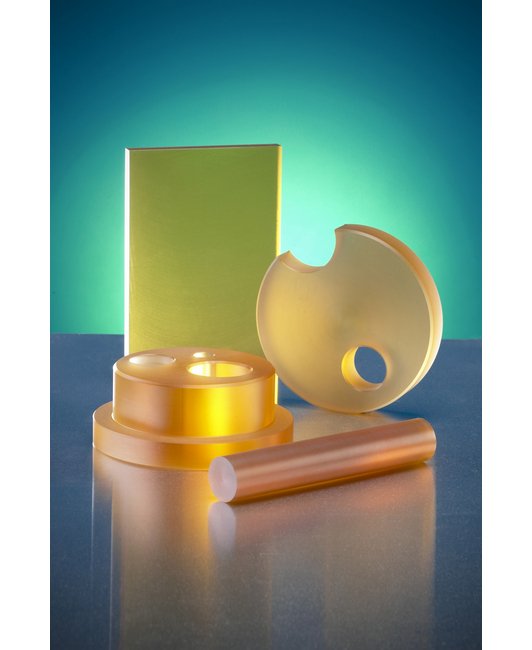

  • ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic - Image 3
1 3
Trident Plastics, Inc. →

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

SHA-9d9915

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic for superior strength and broad chemical resistance.

$99.99
$99.99
Sale

Initiate Order

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

$99.99

Quantity: 1

Claim Your Seller Account

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

ULTEM® 1000 Natural Unfilled Polyetherimide Rod - High Performance Thermoplastic

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience unmatched performance with ULTEM® 1000 Natural Unfilled Polyetherimide Rod. This high-quality thermoplastic material offers exceptional strength at high temperatures, broad chemical resistance, and flame resistance with low smoke emission. With properties like high modulus, property retention, and resistance to environmental stress cracking, this ULTEM® PEI stock shape is ideal for various applications. Its FDA compliance, UL94 V-0 rating, and superior mechanical strength make it a top choice for industries requiring reliability and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Advantages 0
UL94 V-O.Extremely Low NBS Smoke Evolution.FDA Compliant (Natural Un-filled).Superior Limiting Oxygen Index.Broad Chemical Resistance.High Dielectric Strength & Stability.Exceptional Mechanical Strength.
Applications 0
Burn-in Test Sockets Connectors Automotive Components Valves Electrical Fittings Microwave Components Medical Components
Specifications Coefficient Of Linear Thermal Expansion
3.1 x 10-5 in/in/ºF
Specifications Compressive Modulus
480000 psi
Specifications Compressive Strength At Yield 73f Astm D695
21900 psi
Specifications Deflection Temperature At 264 Psi 0250 Astm D648
392 ºF
Specifications Deflection Temperature At 66 Psi 0250 Astm D648
410 ºF
Specifications Diameter
5.00 in
Specifications Dielectric Strength In Air Astm D149
831 V/m
Specifications Dielectric Strength In Oil Astm D149
710 V/m
Specifications Elongation At Break 73f Astm D638
60 %
Specifications Elongation Yield 73f Astm D638
7 %
Specifications Flammability Rating Ul 94
V0
Specifications Flexural Modulus 482f250c
480000 psi
Specifications Flexural Strength 73f Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M109
Specifications Impact Strength Notched At 73f Astm D256
1 ft·lb/in
Specifications Impact Strength Un Notched
25 ft·lb/in
Specifications Length
1 ft | 4 ft | 8 ft
Specifications Maximum Operating Temperature
338 ºF
Specifications Shear Strength Ultimate 73f
15000 psi
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus 73f Astm D638
430000 psi
Specifications Tensile Strength At Break 73f
15200 psi
Specifications Tensile Strength At Yield 73f Astm D638
15200 psi
Specifications Volume Resistivity 0062 Astm D257
1.0 x 1017 ohm·cm
Specifications Water Absorption 24 Hrs 73f Astm D570
0.25 %
Specifications Water Absorption Equilibrium 73f Astm D570
1.25 %
Specifications Weight
10.800 lb/ft
