ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

SHA-1ebef0

ULTEM® 1000 PEI Rod: High-performance amorphous thermoplastic with FDA Compliance & UL94 V-0 rating.

$34.99
$34.99
Sale

Initiate Order

ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

$34.99

Quantity: 1

Claim Your Seller Account

ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

ULTEM® 1000 Polyetherimide Rod - Unfilled Natural PEI Bar

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

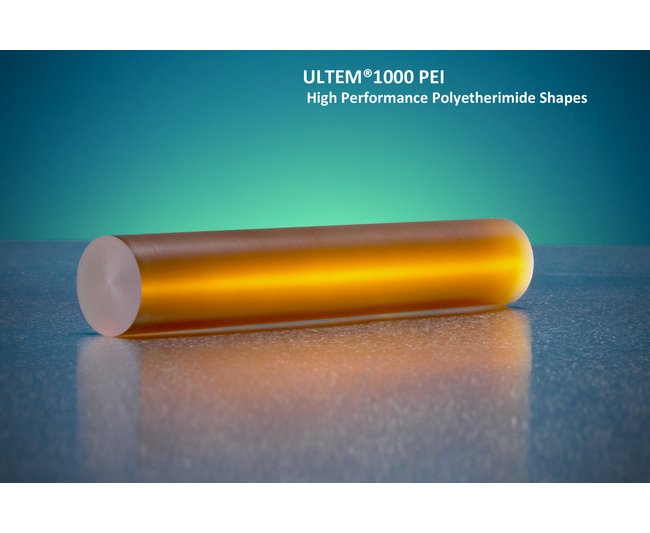

The ULTEM® 1000 Polyetherimide Rod is a top-tier amorphous thermoplastic known for its exceptional performance in demanding environments. Offering high strength at elevated temperatures, high modulus, and extensive chemical resistance, this material is a reliable choice for various applications. With flame resistance, low smoke emission, and resistance to environmental stress cracking, ULTEM® 1000 PEI stock shapes guarantee durability and reliability. This natural unfilled rod is FDA Compliant, ASTM D5205 and UL94 V-0 certified, making it ideal for industries requiring top-tier materials.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Advantages 0
UL94 V-O.Extremely Low NBS Smoke Evolution.FDA Compliant (Natural Un-filled).Superior Limiting Oxygen Index.Broad Chemical Resistance.High Dielectric Strength & Stability.Exceptional Mechanical Strength.
Applications 0
Burn-in Test Sockets Connectors Automotive Components Valves Electrical Fittings Microwave Components Medical Components
Specifications Coefficient Of Linear Thermal Expansion
3.1 x 10-5 in/in/ºF
Specifications Compressive Modulus
480000 psi
Specifications Compressive Strength At Yield 73f Astm D695
21900 psi
Specifications Deflection Temperature At 264 Psi 0250 Astm D648
392 ºF
Specifications Deflection Temperature At 66 Psi 0250 Astm D648
410 ºF
Specifications Diameter
.562 in
Specifications Dielectric Strength In Air Astm D149
831 V/m
Specifications Dielectric Strength In Oil Astm D149
710 V/m
Specifications Elongation At Break 73f Astm D638
60 %
Specifications Elongation Yield 73f Astm D638
7 %
Specifications Flammability Rating Ul 94
V0
Specifications Flexural Modulus 482f250c
480000 psi
Specifications Flexural Strength 73f Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M109
Specifications Impact Strength Notched At 73f Astm D256
1 ft·lb/in
Specifications Impact Strength Un Notched
25 ft·lb/in
Specifications Length
8 ft
Specifications Maximum Operating Temperature
338 ºF
Specifications Shear Strength Ultimate 73f
15000 psi
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus 73f Astm D638
430000 psi
Specifications Tensile Strength At Break 73f
15200 psi
Specifications Tensile Strength At Yield 73f Astm D638
15200 psi
Specifications Volume Resistivity 0062 Astm D257
1.0 x 1017 ohm·cm
Specifications Water Absorption 24 Hrs 73f Astm D570
0.25 %
Specifications Water Absorption Equilibrium 73f Astm D570
1.25 %
Specifications Weight
0.137 lb/ft
