Ultra-Met® On Edge Milling Blanks with Hole, 0.322/0.330 in Thickness
Ultra-Met® On Edge Milling Blanks with Hole, 0.322/0.330 in Thickness
SKU:MIL-eb687e
Ultra-Met® On Edge Milling Blanks - precise thickness, durable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met® On Edge Milling Blanks with Hole, 0.322/0.330 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® On Edge Milling Blanks with Hole, 0.322/0.330 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

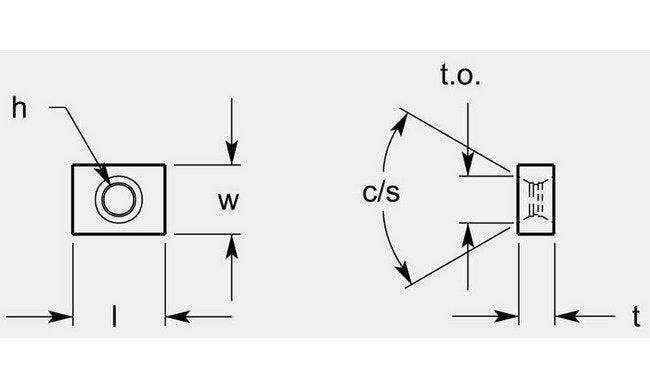

Experience superior cutting performance with Ultra-Met® On Edge Milling Blanks featuring a variable thickness of 0.322 to 0.330 inches. These precision blanks boast a width of 0.515 to 0.525 inches, a hole diameter of 0.207 to 0.219 inches, and a C/S angle of 82°. With a TO range of 0.328 to 0.340 inches and a length of 0.765 to 0.775 inches, these blanks ensure high precision in milling applications. Grade availability can be tailored to specific requirements, ensuring optimal performance and durability.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification Cs
82 º
Dimensional Specification Hole
0.207 / 0.219 in
Dimensional Specification L
0.765 / 0.775 in
Dimensional Specification Thickness T
0.322 / 0.330 in
Dimensional Specification To
0.328 / 0.340 in
Dimensional Specification Width W
0.515 / 0.525 in
Grade Availability Grade Availability
Available on Request
