Ultra-Met® On Edge Milling with Hole, 0.265/0.270 in Thickness
Ultra-Met® On Edge Milling with Hole, 0.265/0.270 in Thickness
SKU:MIL-e89c55
Precision Ultra-Met® On Edge Milling with Hole, 0.265/0.270 in thickness, ideal for machining applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ultra-Met® On Edge Milling with Hole, 0.265/0.270 in Thickness
$59.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® On Edge Milling with Hole, 0.265/0.270 in Thickness
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met® On Edge Milling with Hole offers precision with a thickness of 0.265 to 0.270 inches, ideal for machining applications requiring tight tolerances. With a width of 0.450 to 0.456 inches and a hole size of 0.174 to 0.180 inches, this milling blank ensures accuracy and durability. Designed with a 40-degree angle and grade availability upon request, it meets stringent quality standards for industrial and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

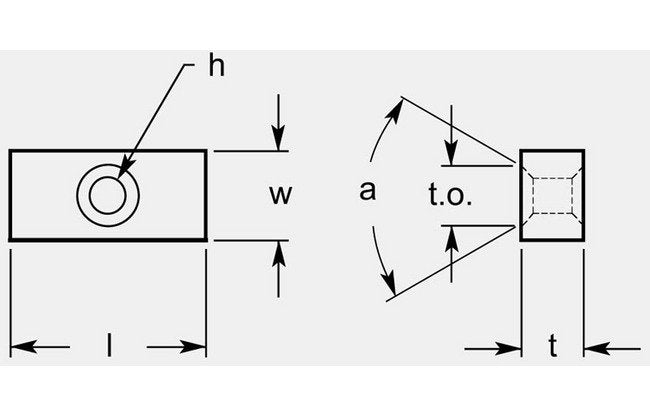

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
40 º
Dimensional Specification Angle A
40 º
Dimensional Specification Hole
0.174 / 0.180 in
Dimensional Specification L
0.516 / 0.524 in
Dimensional Specification Thickness T
0.265 / 0.270 in
Dimensional Specification To
0.233 / 0.239 in
Dimensional Specification Width W
0.450 / 0.456 in
Grade Availability Grade Availability
Available on Request
