Ultra-Met® Square Negative Turning Blank with Hole, 0.166/0.174 in
Ultra-Met® Square Negative Turning Blank with Hole, 0.166/0.174 in
SKU:TUR-d9eccc
Precision meets durability with Ultra-Met® Square Negative Turning Blank. Ideal for high-performance machining, available in various grades.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ultra-Met® Square Negative Turning Blank with Hole, 0.166/0.174 in
$29.99
Quantity: 1
Claim Your Seller Account
Ultra-Met® Square Negative Turning Blank with Hole, 0.166/0.174 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ultra-Met® Square Negative Turning Blank with Hole offers precision and durability in machining applications. With a thickness of 0.166/0.174 inches and an inscribed circle of 0.389/0.395 inches, this blank is designed for high-performance turning operations. The square negative shape with a 90-degree angle ensures efficient material removal, while the hole diameter of 0.147/0.153 inches enhances versatility. Available in a range of grades, this blank guarantees superior quality and performance, making it an ideal choice for industrial applications.

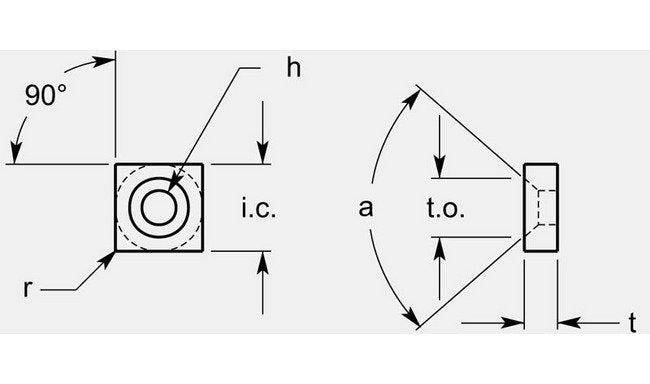

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.147 / 0.153 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.166 / 0.174 in
Dimensional Specification To
0.297 / 0.307 in
Grade Availability Grade Availability
Available on Request
