The Ultra-Met® Utility Railroad Heavy Turning Blank offers exceptional durability and precision in turning applications. With a thickness range of 0.495 to 0.505 inches, this blank is designed to meet the demanding requirements of railroad industry projects. Crafted with a precise radius of 3/16 inches, width of 0.745 to 0.755 inches, length of 1.245 to 1.255 inches, and a 0.312-inch deep dimple, this turning blank ensures consistent performance and quality results. Available grades can be requested to match specific project needs.
Product Specifications
Classifications Brands
Ultra-Met®

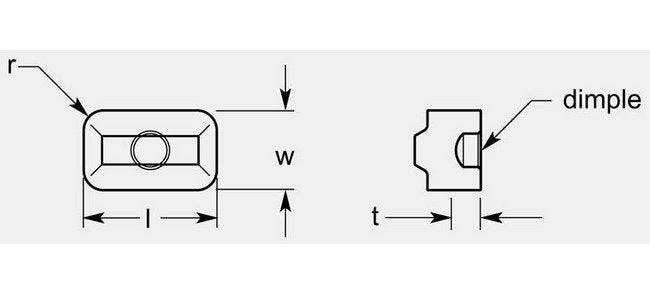

Dimensional Specification Dimple
0.312 in dia. x 0.250 in deep
Dimensional Specification L
1.245 / 1.255 in
Dimensional Specification Radius R
3/16 in
Dimensional Specification Thickness T
0.495 / 0.505 in
Dimensional Specification Width W
0.745 / 0.755 in
Grade Availability Grade Availability
Available on Request
