The Unimaster® Dust Collector by Donaldson® Torit® sets the standard for efficient and quiet dust collection. With a nominal airflow ranging from 450 to 2000 ft³/min, this collector offers a cloth area of 150 ft², ensuring optimal filtration. Its compact design minimizes floor space, while its versatility allows for use in various dust collection applications. The Unimaster® operates quietly, with enclosed motors and a fan to reduce noise. Easy maintenance is ensured with features like automatic shaker cleaning and a self-contained design, making it ideal for intermittent plant operations.
Product Specifications
Additional Information

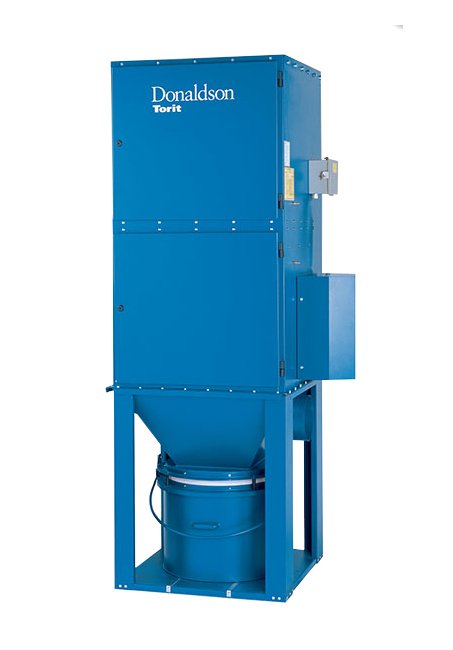

A self-contained collector with everything needed to begin collecting dust, the Unimaster® comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster® can be used as a central system or at the point of dust generation.

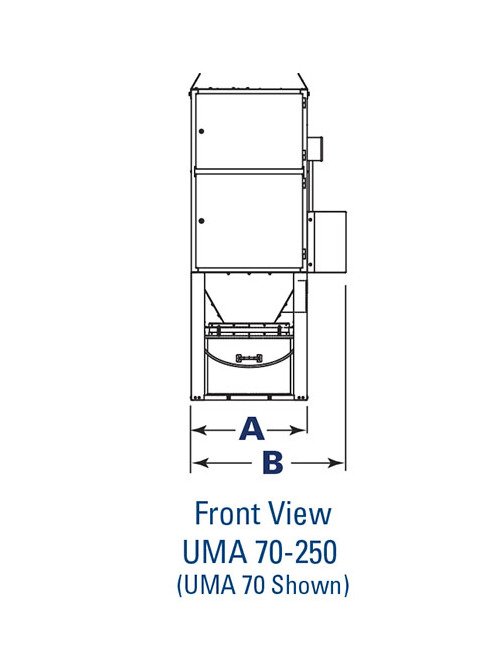

Dimensions Dimension A
32.3 in | 820.4 mm
Dimensions Dimension B
41.2 in | 1046.5 mm
Dimensions Dimension C
36.4 in | 924.6 mm
Dimensions Dimension D
94.0 in | 2387.6 mm

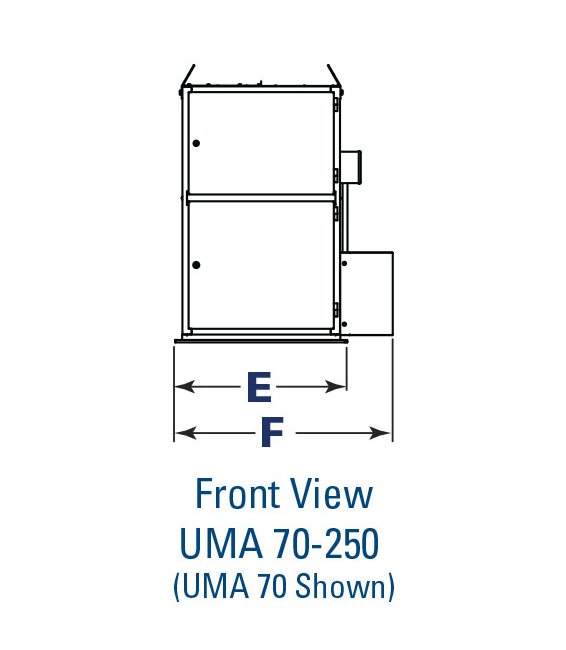

Dimensions Dimension E
32.3 in | 820.4 mm
Dimensions Dimension F
41.2 in | 1046.5 mm
Dimensions Dimension G
32.9 in | 835.7 mm
Dimensions Dimension H
59.8 in | 1518.9 mm

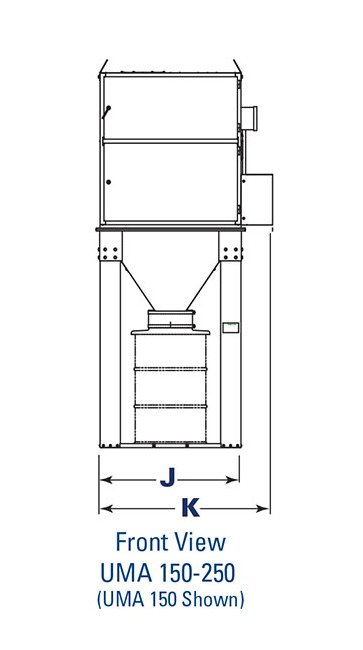

Dimensions Dimension J
32.9 in | 835.7 mm
Dimensions Dimension K
41.6 in | 1056.6 mm
Dimensions Dimension L
30.3 in | 769.6 mm
Dimensions Dimension M
121.0 in | 3073.4 mm
Features
Compact Design - Minimizes floor space and fits in virtually any plant layout.Versatility - Three configurations to suit a variety of dust collection applications.Broad Range - Offering maximum air handling capacity in a compact design, the Unimaster® offers filtration media area from 40 to 750 square feet.Quiet & Efficient Operation - Motors and fan are enclosed in collector housing to minimize noise.Easy Maintenance
Specifications 55 Gallon Drum Base Shipping Weight
875 lb | 396.9 kg
Specifications Bin Vent Base Shipping Weight
600 lb | 272.2 kg
Specifications Cloth Area
150 ft² | 13.9 m²
Specifications Hopper Base Shipping Weight
362.9 kg
Specifications Inlet Diameter
8 in | 203.2 mm
Specifications Nominal Airflow
450 to 2000 ft³/min | 764 to 3397 m³/h
Specifications Note For Uma Weighted Sound Pressure Levels Acous
dB(A) sound levels are an average of measurements taken in a normal industrial area. Sound levels were taken in accordance with Reference Standard ISO 3746:1995, Survey Method, Grade 3. Installed sound levels may vary depending upon measurement location, operating conditions, and installations.
Specifications Number Of Bag Filters
1
Specifications Number Of Binsdrums
1
Specifications Uma Weighted Sound Pressure Levels Without Acoust
70 dBA | 100 dBA | 150 dBA | 250 dBA | 450 dBA | 750 dBA
Specifications Uma Weighted Sound Pressure Levels With Acoustic
74 dBA
Specifications Warranty
10 years
