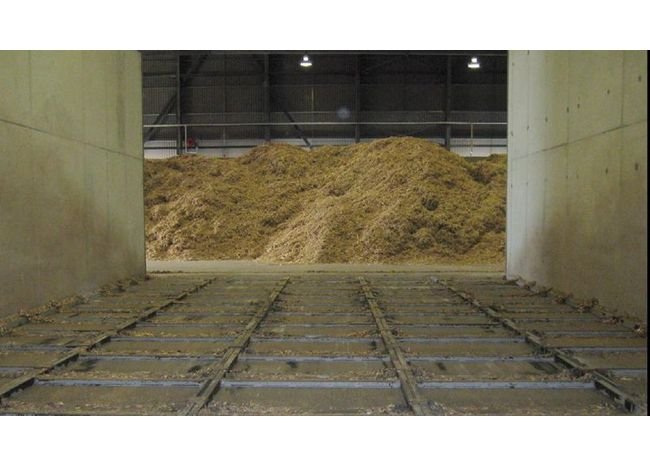

The Vecoplan® 17m Push/Pull Rod Discharger is a cutting-edge solution for conveying free-flowing materials like sawdust and wood chips. Hydraulically operated push/pull rods ensure efficient material transport, with a maximum working length of 17m and a conveying capacity of 250 m³/h. This system, equipped with advanced hydraulic cylinders and a power range of 4 to 75 kW, offers precise dosing and extraction capabilities, making it ideal for industrial applications requiring high performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

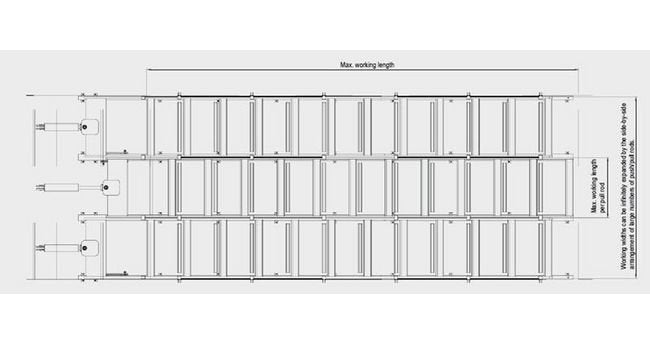

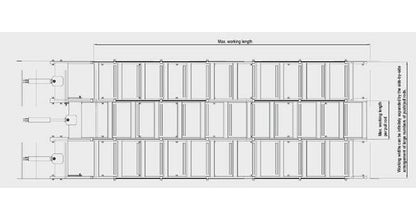

The hydraulic cylinders of a pull rod discharger are mounted at the discharge point, whereas the hydraulic cylinders of a push rod discharger are mounted in the silo at the rear (opposite the discharge point).
Manufacturing Notes 0
Conveying Capacity: Depending on silo width and hydraulic motor power
Specifications Conveying Capacity
250 m³/h
Specifications Cylinder Type
140/70/700 | 200/90/900
Specifications Cylinder Type 14070700
Yes
Specifications Cylinder Type 20090900
Yes
Specifications Maximum Working Length
17 m
Specifications Maximum Working Width Per Pull Rod
2 m
Specifications Motor Power
4 to 75 kW
Specifications Operating Pressure
210 bar
Specifications Single Bar Version
Yes
