Vecoplan® 22m Push/Pull Rod Discharger
Vecoplan® 22m Push/Pull Rod Discharger
SKU:PUS-da13a0
Efficiently convey sawdust and wood chips with Vecoplan® 22m Push/Pull Rod Discharger.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Vecoplan® 22m Push/Pull Rod Discharger
$12,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan® 22m Push/Pull Rod Discharger
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

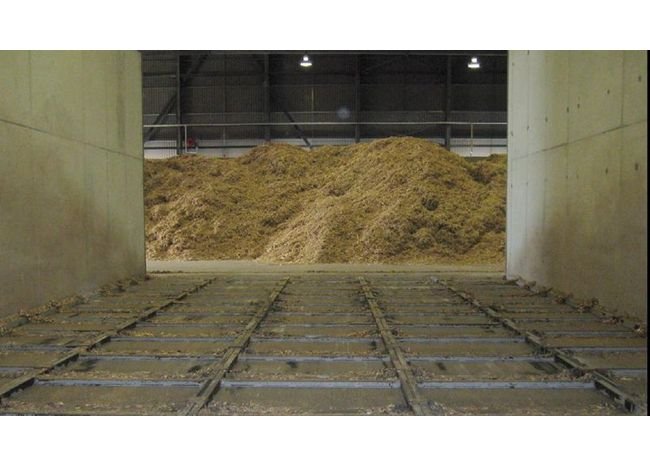

The Vecoplan® 22m Push/Pull Rod Discharger efficiently conveys free-flowing materials like sawdust and wood chips. Featuring hydraulically operated push/pull rods and a conveying capacity of 250 m³/h, this system utilizes hydraulic cylinders for precise and controlled material movement. With a maximum working length of 22m and diverse cylinder types, it ensures reliable and automated material discharge, meeting stringent institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

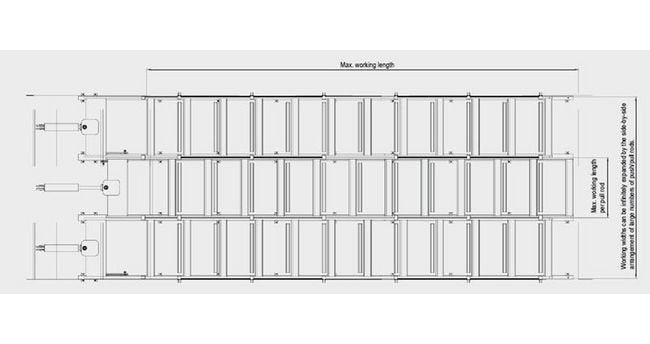

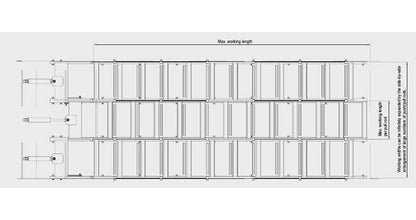

The hydraulic cylinders of a pull rod discharger are mounted at the discharge point, whereas the hydraulic cylinders of a push rod discharger are mounted in the silo at the rear (opposite the discharge point).
Manufacturing Notes 0
Conveying Capacity: Depending on silo width and hydraulic motor power
Specifications Conveying Capacity
250 m³/h
Specifications Cylinder Type
140/70/700 | 200/90/900
Specifications Cylinder Type 14070700
Yes
Specifications Cylinder Type 20090900
Yes
Specifications Ladder Frame Version
Yes
Specifications Maximum Working Length
22 m
Specifications Maximum Working Width Per Pull Rod
2 m
Specifications Motor Power
4 to 75 kW
Specifications Operating Pressure
210 bar
Specifications Trafficable
Yes
Specifications Transmission Of Cylinder Forces Into Silo Base
Yes
