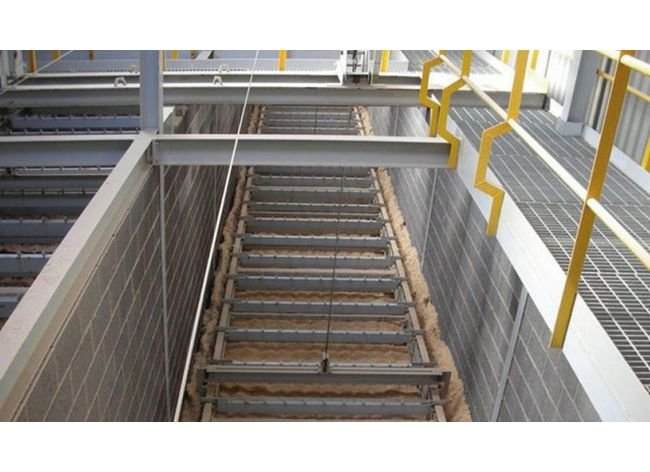

The Vecoplan® Loading/Unloading Conveyor is a versatile solution designed for efficiently handling wood chips in silos and storage bunkers. Unlike conventional systems, this conveyor has the capability to both fill and empty silos, thanks to its distribution/discharge conveyor that operates seamlessly with programmable logic control (PLC) for automatic processes. With a robust construction and a maximum discharge capacity of 400 m³/h, this conveyor offers exceptional performance for industrial applications.
Product Specifications
Additional Information 0

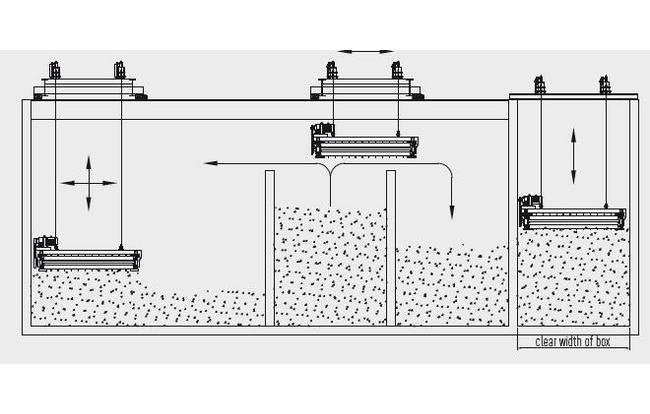

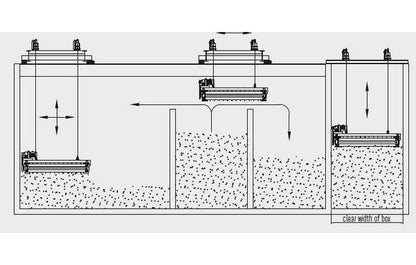

The standard version of a loading-/unloading conveyor works in a storage box. If several boxes are arranged side by side, it is also possible to move the loading/unloading conveyor on a chassis to the other boxes and to fill and empty them as well.
Specifications Breaking Load Conveyor Chain
11.2 ton
Specifications Clear Width Of Box
4600 mm | 5000 mm
Specifications Conveying Width
4100 mm | 4500 mm

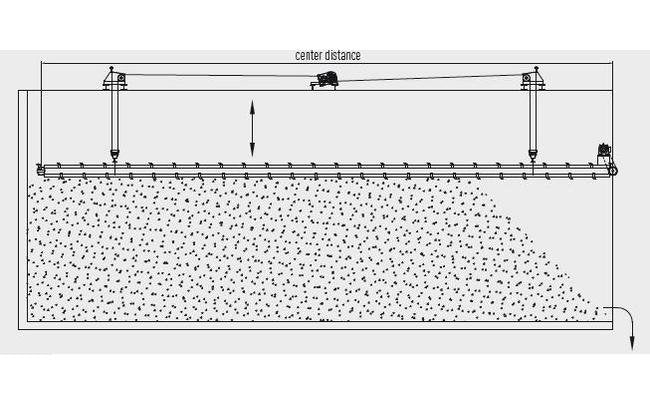

Specifications Maximum Center Distance
30000 mm
Specifications Maximum Discharge Capacity
400 m³/h
