Vecoplan® 500m³/h Loading/Unloading Conveyor
Vecoplan® 500m³/h Loading/Unloading Conveyor
SKU:LOA-1966a4
Vecoplan® 500m³/h Conveyor: Maximizes wood chips handling efficiency in silos & storage bunkers. Fill & empty multiple boxes simultaneously!
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Vecoplan® 500m³/h Loading/Unloading Conveyor
$24,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® 500m³/h Loading/Unloading Conveyor
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

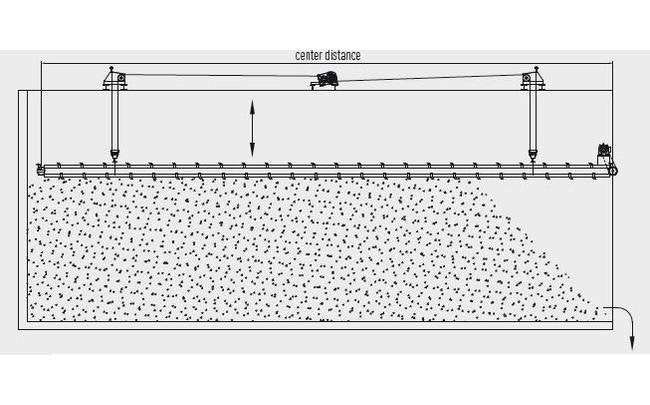

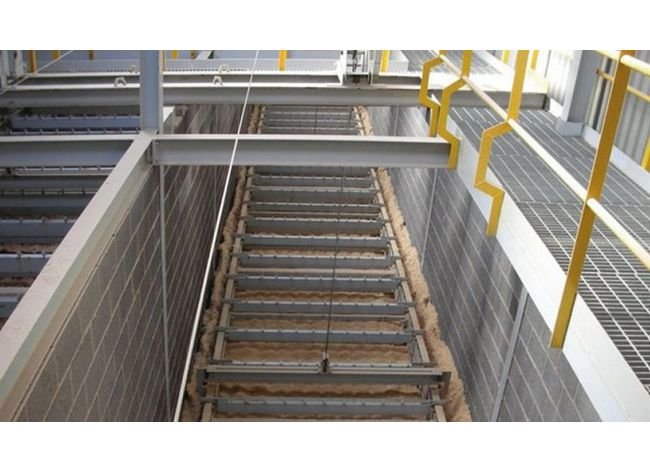

The Vecoplan® 500 Cubic Meter Per Hour Loading/Unloading Conveyor is a versatile solution specifically designed for efficiently handling wood chips in silos and storage bunkers. Unlike conventional systems, this conveyor can both fill and empty silos, thanks to its innovative distribution/discharge conveyor that can be adjusted vertically for continuous loading and unloading processes. Controlled by a cutting-edge PLC system, this conveyor ensures seamless operations and the ability to simultaneously fill and empty multiple boxes. With robust engineering and a maximum discharge capacity of 500 m³/h, this Vecoplan® conveyor elevates efficiency and productivity in industrial material handling applications.
Product Specifications
Additional Information 0

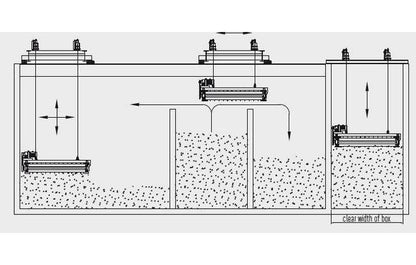

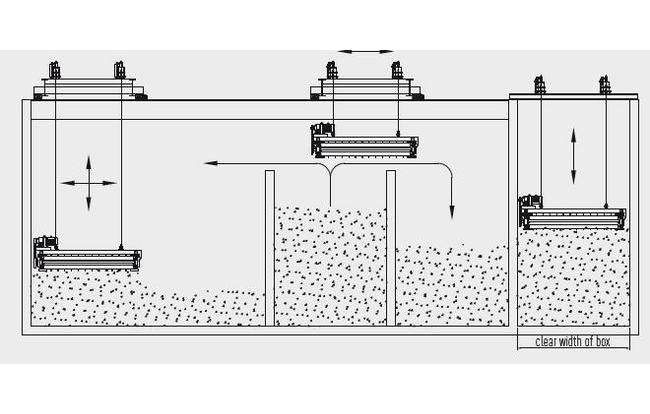

The standard version of a loading-/unloading conveyor works in a storage box. If several boxes are arranged side by side, it is also possible to move the loading/unloading conveyor on a chassis to the other boxes and to fill and empty them as well.
Specifications Breaking Load Conveyor Chain
16 ton
Specifications Clear Width Of Box
5000 mm
Specifications Conveying Width
4500 mm
Specifications Maximum Center Distance
30000 mm
Specifications Maximum Discharge Capacity
500 m³/h
