Vecoplan® RTR Series 3.75 Cubic Yard Single Shaft Shredder
Vecoplan® RTR Series 3.75 Cubic Yard Single Shaft Shredder
SKU:RTR-44eb26
Vecoplan® RTR Series Single Shaft Shredder - Extracts steel wire from rubber in tires for higher recycling value. ISO 9001 compliant.
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
Vecoplan® RTR Series 3.75 Cubic Yard Single Shaft Shredder
$29,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® RTR Series 3.75 Cubic Yard Single Shaft Shredder
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

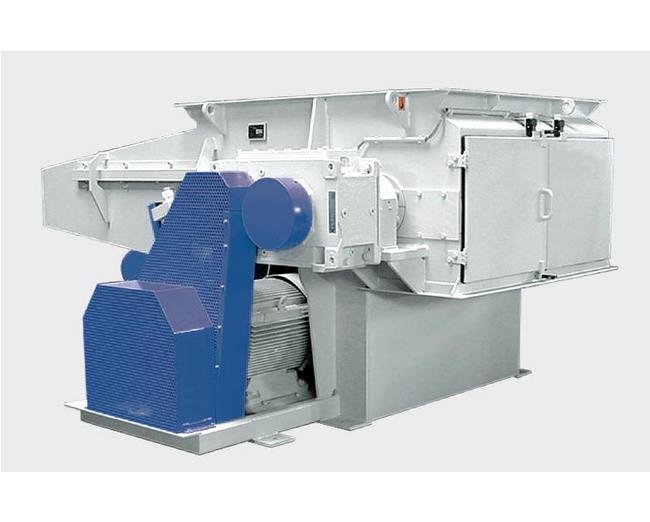

The Vecoplan® RTR Series Single Shaft Shredder is purpose-built to extract steel wire from rubber in pre-shredded tires, enhancing end product quality and recycling value. With a powerful 100 hp drive motor and smart technology features like 'Smart' Ram Programming, double row cutters, and wear-resistant materials, this shredder offers efficient steel wire liberation while ensuring durability and ease of maintenance. Compliant with ISO 9001 standards, making it a reliable choice for sustainable recycling operations.
Product Specifications
Specifications Drive Motor Power
100 hp
Specifications Features
“Smart” Ram Programming | 24 in Machine Base | 24 in Riser Base Included | 4-Way, Indexable Cutting Inserts | Double Row Cutters | Double Sidewall at Rotor | Easy Access Screen | Fully Hard-Faced Rotor | Hardened Extended-Life Counter Knife | Hardox Manganese-Alloy Sidewalls | Hardox Screen | Heavy-Duty Ram and Wiper Package | ISO 9001 Manufactured | Outboard Rotor Bearing Package | PLC Control Panel | Reinforced Floor, Ram, T. Arm, Wipers, Motor Mount | Smart Ram Programming Package | Touch Pad Monitoring and Control | Tramp Metal Protection | Wear Resistant Floor
Specifications Feed System Hpspeed
5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
58 in
Specifications Hopper Opening Width
52 in
Specifications Hopper Volume
3.75 yd³
Specifications Machine Weight
10,000 to 12,900 lb
Specifications Number Of Cutters
60 pieces
Specifications Number Of Phase
3
Specifications Options
Energy Saving HiTorc™ Drive Package | Optional Water Cooler Rotor
Specifications Riser Base Size
24 in
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
