Vecoplan® V-EBS 2500 Single Shaft Shredder
Vecoplan® V-EBS 2500 Single Shaft Shredder
SKU:VEB-1bb5a4
Vecoplan® V-EBS 2500 Single Shaft Shredder: Powerful industrial machine for efficient RDF production from diverse waste types.
Regular price
$69,999.00
Regular price
Sale price
$69,999.00
Unit price
per
Initiate Order
Vecoplan® V-EBS 2500 Single Shaft Shredder
$69,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® V-EBS 2500 Single Shaft Shredder
$69,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

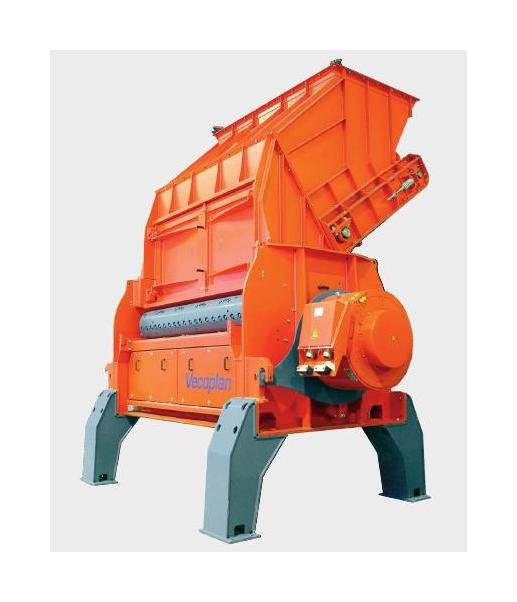

The Vecoplan® V-EBS 2500 Single Shaft Shredder is a robust industrial machine designed for RDF production from various waste streams. With 54 durable cutters and dual drives, it offers efficient shredding at rotor speeds of 150 to 250 rpm. Powered by a 203 kW motor, this shredder has a large infeed opening, processing 10 to 22 tons per hour of waste material. Weighing 28 tons, it features a sturdy construction with a 1000 mm rotor diameter and meets high standards for quality and performance in waste management for cement and power plant use.
Product Specifications
Manufacturing Notes 0
Capacity per Hour : Depending on input material and screen size
Specifications Capacity Per Hour
10 to 22 ton
Specifications Centrifugal Moment
1270 kgsm²
Specifications Drive Motor Power
203 kW
Specifications Infeed Opening Length
2510 mm
Specifications Infeed Opening Width
1400 mm
Specifications Machine Weight
28 ton
Specifications Number Of Counterknife Segments
2 x 5
Specifications Number Of Counterknives
2
Specifications Number Of Cutters
54
Specifications Number Of Drives
2
Specifications Overall Height
5000 mm
Specifications Overall Length
5000 mm
Specifications Overall Width
3000 mm
Specifications Rotor Diameter
1000 mm
Specifications Rotor Length
2510 mm
Specifications Rotor Speed
150 to 250 rpm
Specifications Rotor Weight
13 ton
