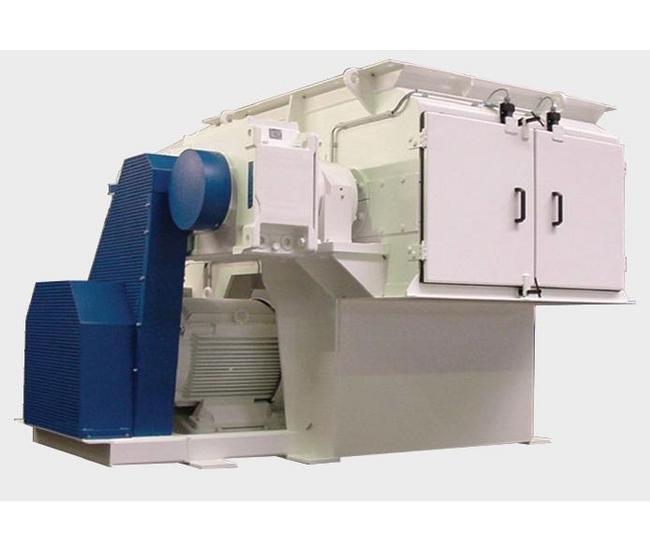

The Vecoplan® VAZ 1100 XL K FF Series Single Shaft Shredder, equipped with the innovative SureCut™ Cutting System, is purpose-built for efficiently reducing plastic films, synthetic fibers, and carpets for extrusion processes. Featuring a robust construction for high throughput, integrated metering capabilities, and thermal monitoring controls, this shredder ensures precise cut lengths and superior bulk densities. With a range of advanced features such as a Critical Duty Drivetrain, SureCut™ system, and heavy-duty components, it offers reliable performance and durability.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
60 hp
Specifications Features
0.015 in Knife Gap for Thin Materials | Built-In Thermal Monitoring Controls for Rotor | Critical Duty Drivetrain | Diverter Plate Over Cutting Rotor | Easy Access Screen | Fluid “TurboCoupling” | Heavy Oversized Outboard Spherical Roller Bearings | Heavy Viscosity Fluids | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low Speed / High Torque Design | Passive Programming for Self-Feed Materials | PLC Controls / Touch Pad Monitoring | Precision Hydraulic "Process Ram" | Reinforced Screens | Rugged Hydraulics | Special Composite 4-Way Indexable Cutting Inserts | SureCut™ Cutting System | Tramp Metal Protection | Wear Resistant Siderails and Cutting Chamber
Specifications Feed System Hpspeed
3 to 5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
52 in
Specifications Hopper Opening Width
42 in
Specifications Hopper Volume
2.9 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
8,500 lb
Specifications Nipper Cutter
23
Specifications Number Of Cutters
48
Specifications Number Of Phase
3
Specifications Options
Airspring Counterknife for High Tramp Metal Content | Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Hydraulic ÐBridgeBreakerÐ Vertical Feed Ram | Multiple Cutter Insert Sizes | Multiple Rotor Configurations | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Variable Frequency Drives
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
