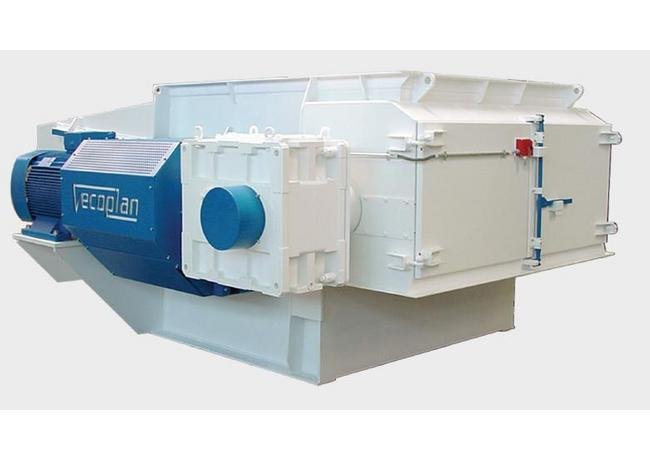

Vecoplan® VAZ 1800 XL Single Shaft Shredder
Vecoplan® VAZ 1800 XL Single Shaft Shredder
SKU:VAZ-a44aa9
Vecoplan® VAZ 1800 XL Single Shaft Shredder - Powerful, Precise, and Reliable. Ideal for plastic reclamation, recycling, and multiple material shredding. ISO 9001 compliant.
Regular price
$57,999.99
Regular price
Sale price
$57,999.99
Unit price
per
Initiate Order
Vecoplan® VAZ 1800 XL Single Shaft Shredder
$57,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ 1800 XL Single Shaft Shredder
$57,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan® VAZ 1800 XL Single Shaft Shredder is a robust solution designed for efficient plastic waste processing, large-scale recycling operations, and diverse material shredding needs. With a powerful 200 hp motor and 126 cutters, this shredder combines precision and durability to handle various materials including wood scraps, medical waste, cardboard, and more. Equipped with advanced features like a 0.015 in knife gap, easy access screen, and heavy-duty construction, it ensures reliable operation and high-quality output. Additionally, meeting ISO 9001 standards, this shredder guarantees performance excellence and long-term reliability for industrial applications.
Product Specifications
Specifications Available With
Airspring™ Counterknife (VAZ 1800-XL F)
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
200 hp
Specifications Features
0.015 in Knife Gap | 4-Way, Indexable Cutting Inserts | Easy Access Screen | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Severe Duty Construction | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
10/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
86 in
Specifications Hopper Opening Width
70 in
Specifications Hopper Volume
11 yd³
Specifications Machine Weight
22,000 to 26,000 lb
Specifications Number Of Cutters
126
Specifications Number Of Phase
3
Specifications Options
Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Critical-Duty Drivetrain | High Speed Ram | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Wear Resistant Cutting Chamber
Specifications Rotor Diameter
25 in
Specifications Rotor Speed
145 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
