Vecoplan® VNZ Series 49x117 Large Waste Shredder
Vecoplan® VNZ Series 49x117 Large Waste Shredder
SKU:VNZ-0c1f40
Vecoplan® VNZ Series: High-performance Large Waste Shredder for RDF production
Regular price
$79,999.99
Regular price
Sale price
$79,999.99
Unit price
per
Initiate Order
Vecoplan® VNZ Series 49x117 Large Waste Shredder
$79,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan® VNZ Series 49x117 Large Waste Shredder
$79,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

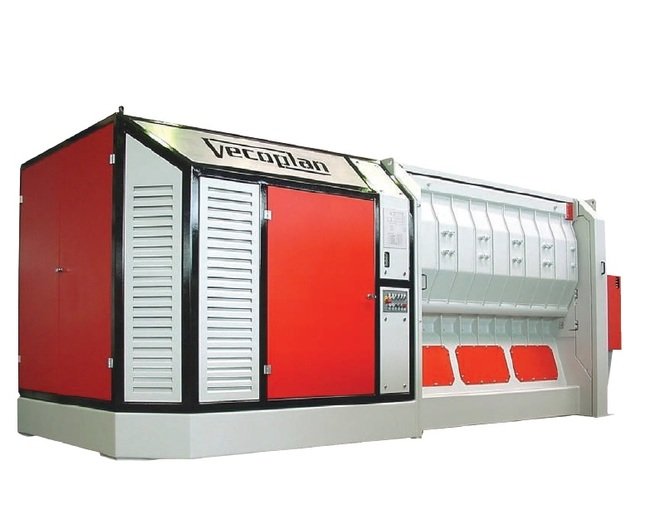

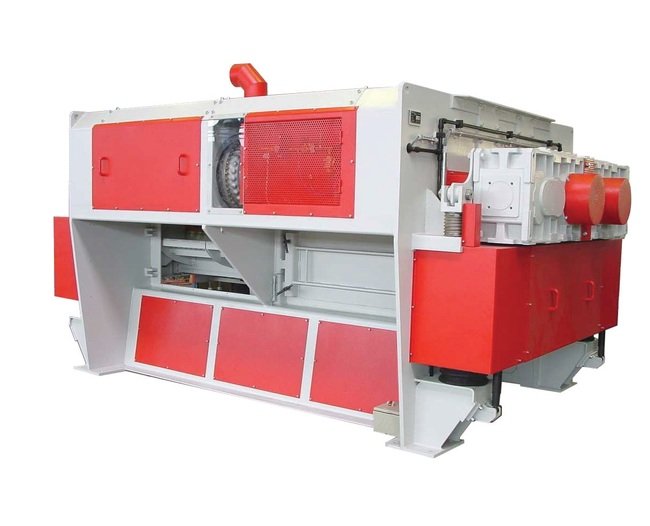

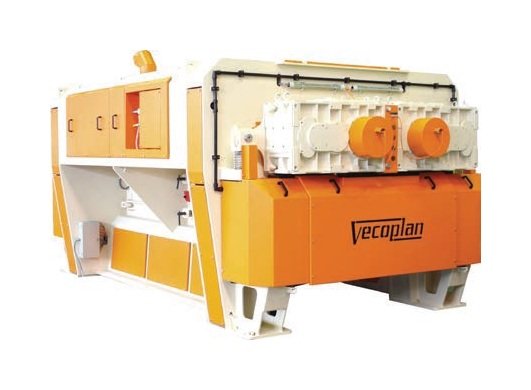

The Vecoplan® VNZ Series 49x117 Large Waste Shredder is the epitome of efficiency and reliability in RDF production. With its dual "U" rotors, Airspring Counter Knife, and high-power drive system, this shredder offers exceptional shredding performance with minimal maintenance downtime. Precision sizing screens ensure consistent particle sizes, meeting institutional waste-to-energy program requirements. Vecoplan®'s reputation for excellence in shredding technology guarantees optimal performance and profitability for solid waste combustion operations.
Product Specifications
Additional Information 0
In addition to its RDF prep systems, Vecoplan® has the unique advantage of extensive shredding experience in most recycling, alternative energy and destruction applications found within our collected waste streams. Some of these applications include unsorted MSW processing, transfer stations, MRFs, multi-material and Single Stream Recycling, biomass, compost, wood waste from industry, C&D, plastics, paper, electronics and many specialized waste streams. From municipalities and cruise ships to Fortune 500 companies and entire industries - shredding is Vecoplan®'s specialty! From unique and proven shredding designs to award-winning developments in ferrous, non-ferrous, density and size separation and classification technologies, Vecoplan® offers the most suitable systems available.
Counter Knife 0

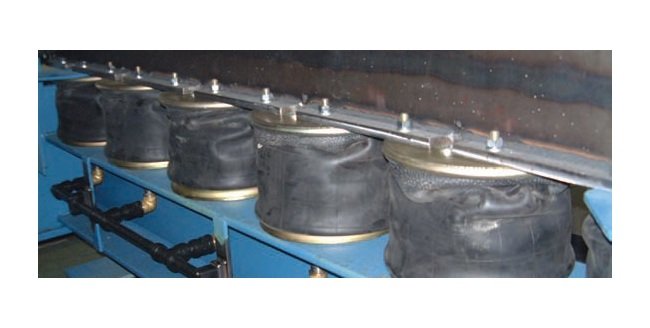

VNZ Shredders feature the exclusive Vecoplan® Airspring Counter Knife. Positioned in-between the dual rotors and mounted on air springs, the serrated edges of the counter knife mesh precisely with the cutting teeth on both opposing rotors. The Vecoplan® Airspring Counter Knife delivers three unique advantages over conventional shredder designs. First, it provides a smaller, much more consistent shred size. Second, Vecoplan® counter knives can be quickly and easily replaced when worn, eliminating costly and time consuming resurfacing. Next, the air springs provide impact absorption to minimize damage to the machine, and proximity switches on the springs shut off the machine eliminating further damage. Foreign objects can be removed from outside of the shredder.
Specifications Drive Power
180 to 200 hp
Specifications Height
83 in
Specifications Infeed Opening Length
117 in
Specifications Infeed Opening Width
49 in
Specifications Length
191 in
Specifications Number Of Cutters
2 x 34 / 68 / 92
Specifications Number Of Drives
2
Specifications Resizing Screens

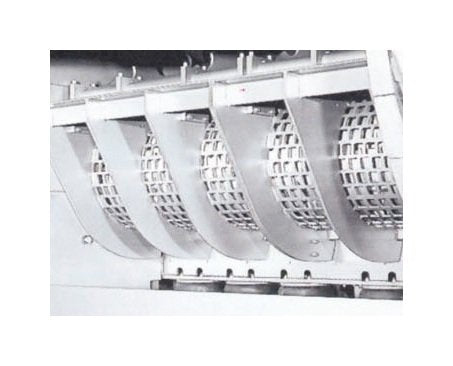

Precision sizing screens add economical production of consistent sized particles in one pass.
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
165 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Weight
20 ton
Specifications Width
108 in
Vecoplans U Rotor 0

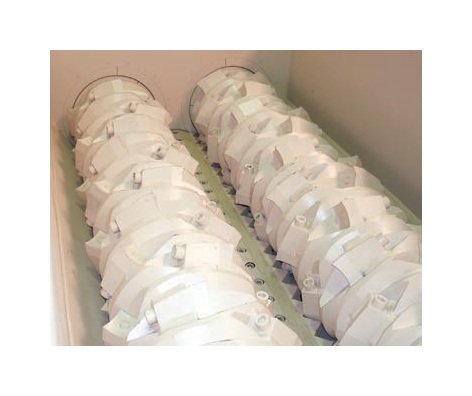

Vecoplan®'s VNZ shredders utilize two patented "U" rotors. The "U" Rotor is the industry's most successful cutting rotor design. The cutting rotor has been engineered for durability and carries a Limited Lifetime Warranty. Cutting inserts are precision fit for easy maintenance. Rotors are available in several diameters dependent on throughput requirements.
Vecoplan Vnz Waste Re Shredders
Vecoplan® VNZ models are used as re-shredders to achieve precise particle size of pre-shredded waste materials and are also used as Pre-Shredders, or primary waste reducers, in some high-capacity applications.To compliment Vecoplan®'s shredding and separation equipment, innovative products for automated loading, material handling and integrated control systems are custom-made for turnkey solutions.
Vnz Re Shredder Models
Vecoplan® VNZ Re-Shredders come in three versions:V - For lighter-duty, high-volume processing of homogenous, pre-shredded waste materials.L - For mixed waste re-shreddingXL - For the toughest and/or bulky re-shredding applications.
