Vibra Shake™ Series 3000 CFM Dust Collector
Vibra Shake™ Series 3000 CFM Dust Collector
SKU:VIB-b5f899
High-performance Vibra Shake™ Series 3000 CFM Dust Collector for efficient and easy self-cleaning dust collection in institutions.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Vibra Shake™ Series 3000 CFM Dust Collector
$6,999.99
Quantity: 1
Claim Your Seller Account
Vibra Shake™ Series 3000 CFM Dust Collector
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

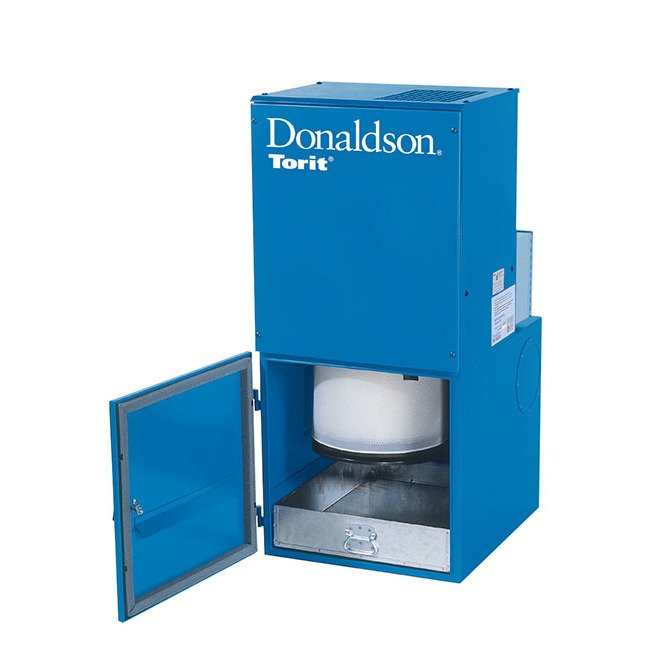

The Vibra Shake™ Series 3000 CFM Dust Collector is a high-performance solution for institutions requiring efficient dust collection. Featuring a Vibra Shake™ cartridge filter with Pleatloc™ corrugation for superior self-cleaning and extended filter life. This collector captures coarse, fibrous, and submicron particles with a galvanized outer liner protecting the filter media. With easy filter changeout and compact design, it ensures high collection efficiency ideal for reclaiming precious metals and maintaining a clean work environment.
Product Specifications
Applications
A self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.Two-stage cartridge for high-efficiency filtration on both coarse and fine dustsCompact, self-contained collector design allows placement flexibility and saves floor spacePreassembled for easy, low-cost installation - no need for compressed airSelection of inlet size and location for installation flexibilityRecirculates filtered air saving heating and cooling costsProvides a cleaner work environment for maximum productivityReduces plant maintenance costs

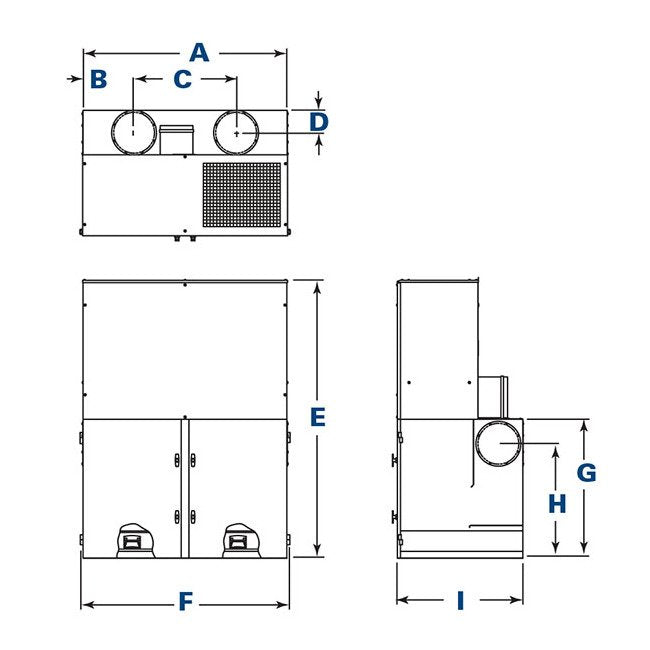

Dimensions Dimension A
50.0 in | 1270 mm
Dimensions Dimension B
12.5 in | 317.5 mm
Dimensions Dimension C
25.0 in | 635.0 mm
Dimensions Dimension D
5.5 in | 139.7 mm
Dimensions Dimension E
75.2 in | 1910.1 mm
Dimensions Dimension F
51.3 in | 1303.0 mm
Dimensions Dimension G
40.1 in | 1018.5 mm
Dimensions Dimension H
34.1 in | 866.1 mm
Dimensions Dimension I
33.0 in | 838.2 mm

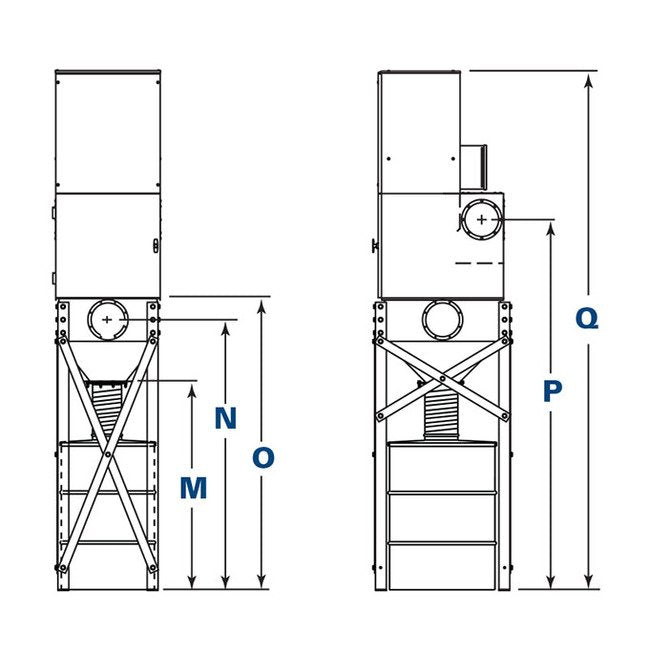

Dimensions Dimension M
48.0 in | 1219.2 mm
Dimensions Dimension P
109.6 in | 2783.8 mm
Dimensions Dimension Q
150.7 in | 3827.8 mm
Features

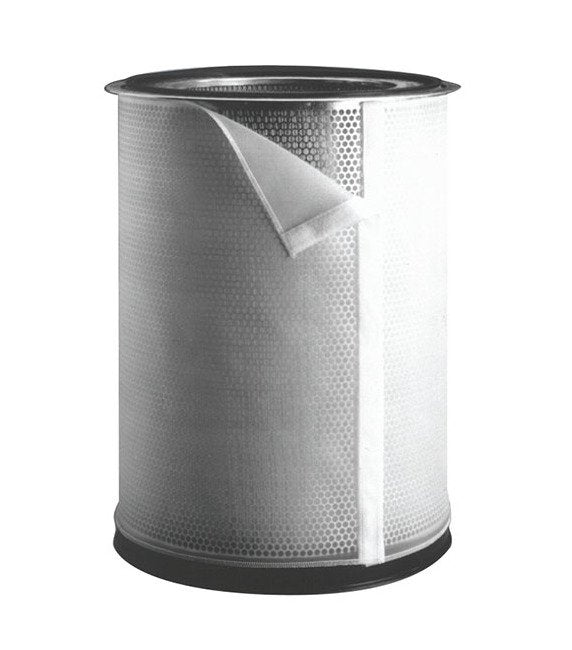

Vibra Shake™ cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter lifeFilter screen captures coarse and fibrous particlesSubmicron particulates pass through the filter screen and are trapped by the inner layer of mediaGalvanized outer liner protects filter mediaEasy filter changeout for quicker maintenance
Specifications Dust Drawer Shipping Weight
776 lb | 352.0 kg
Specifications Dust Drawer Volume
3.6 ft³ | 0.10 m³
Specifications Filter Area
354 ft² | 32.9 m²
Specifications Frequency
60 Hz
Specifications Hopper Shipping Weight
1050 lb | 476.3 kg
Specifications Nominal Airflow
3000 ft³/min | 5096 m³/h
Specifications Sound Level
83 dBA
