Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
Durable Wieland Industrial Connector Housing with 24 poles, IP54 protection, and aluminum construction. Reliable and compliant with RoHS standards.
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

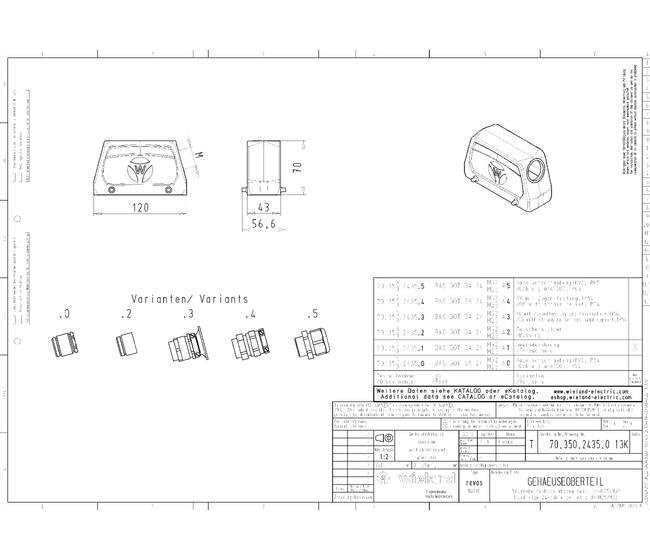

The Wieland HOOD BAS GOT GA 24 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial applications. Constructed with durable aluminum and a gray powder coating, this housing offers exceptional protection with an IP54 rating. Featuring 24 poles, double locking levers, and a M25 cable gland on the right side, it ensures secure connections in challenging environments. With a temperature range from -40ºC to 120ºC and UV resistance, it guarantees reliable performance under varying conditions. This housing is compliant with RoHS standards and is ideal for institutions and government procurement needs.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GA 24 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
24
Model Emc Version
No
Model Height
70 mm
Model Hinged Lid
No
Model Length
120 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
57 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
24
Specifications Profile
Low
