Wieland RST25I3 Male Device Connector, M20 Thread, 90º Angle Plug

Name: Wieland RST25I3 Male Device Connector, M20 Thread, 90º Angle Plug
Brand: Wieland Electric Inc.
SKU: CIR-f6a8d0
Price: 32.99 USD
Availability: OutOfStock

SKU:CIR-f6a8d0

Durable Wieland Male Device Connector with angled 90º plug, IP69 protection. IEC & cULus compliant for industrial use.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

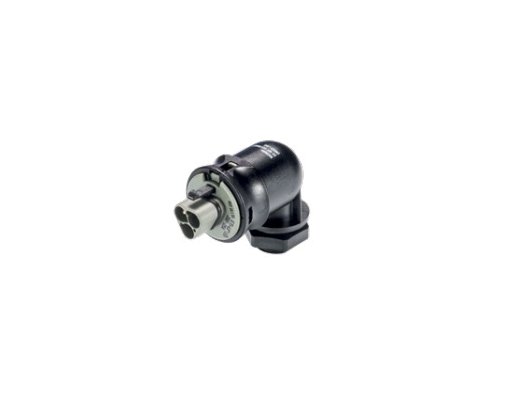

The Wieland RST25I3 Male Device Connector features a durable screw connection and an angled 90º plug, ideal for outdoor use. With a concrete gray coding, it offers a rated current of 25 A and IP69 protection. Compliant with IEC and cULus standards, supporting wire sizes from 0.75 to 6 mm², making it a reliable choice for industrial applications.

Product Specifications

General Angle Of Plug

Angled 90Âº

General Brands

Wieland

General Color Of Codingcontact Carrier

Concrete Gray

General Connection Type

Screw Connection

General Model

RST25I3 Male

General Number Of Poles

Note Note

Technical details are subject to change

Specifications Type

Male

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

25 A

Technical Data Thread Size

M20

Technical Data Wire Size According To Canadian Ul Listed United

12 AWG Solid

Technical Data Wire Size According To International Electrotechn

0.75 to 6 mmÂ²

Wieland RST25I3 Male Device Connector, M20 Thread, 90º Angle Plug
