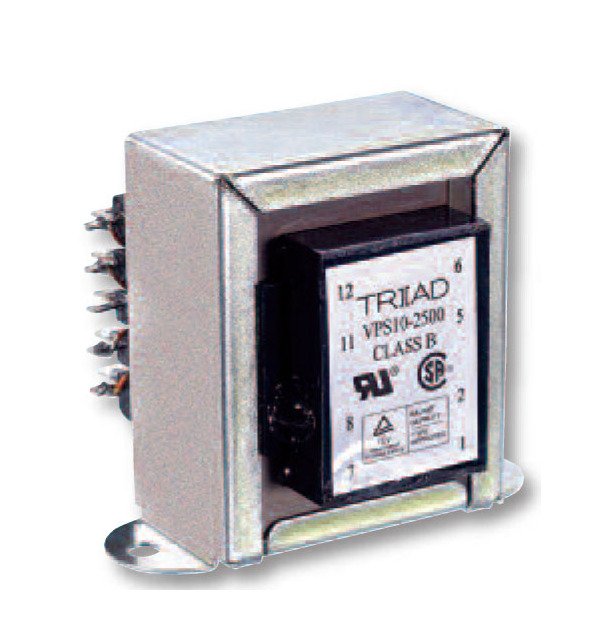

The World Series™ Chassis Mount Quick-Connect Power Transformers are expertly designed to meet stringent U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design within an insulating shroud crafted from UL approved high temperature material, these transformers eliminate the need for electrostatic shielding. With primary and secondary coils electrically isolated from each other and the core, they provide unmatched safety and reliability. Available in sizes from 25 VA to 175 VA, these transformers come with convenient 'quick connect' terminations for seamless installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

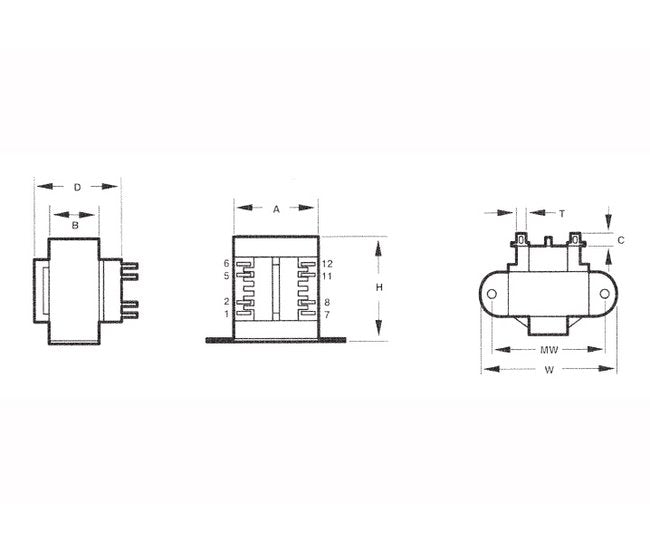

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 6.8 A
Specifications Secondary Series
12.6 V CT at 3.4 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
