Xtreme8™ Multi-Fiber Termination Push-On (MTP®) Jumpers
Xtreme8™ Multi-Fiber Termination Push-On (MTP®) Jumpers
SKU:MUL-ddb446
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Xtreme8™ Multi-Fiber Termination Push-On (MTP®) Jumpers
$49.99
Quantity: 1
Claim Your Seller Account
Xtreme8™ Multi-Fiber Termination Push-On (MTP®) Jumpers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

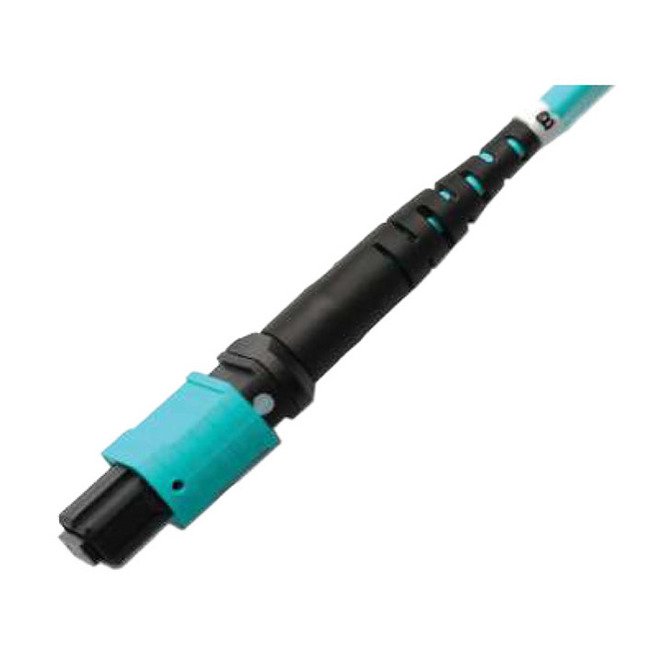

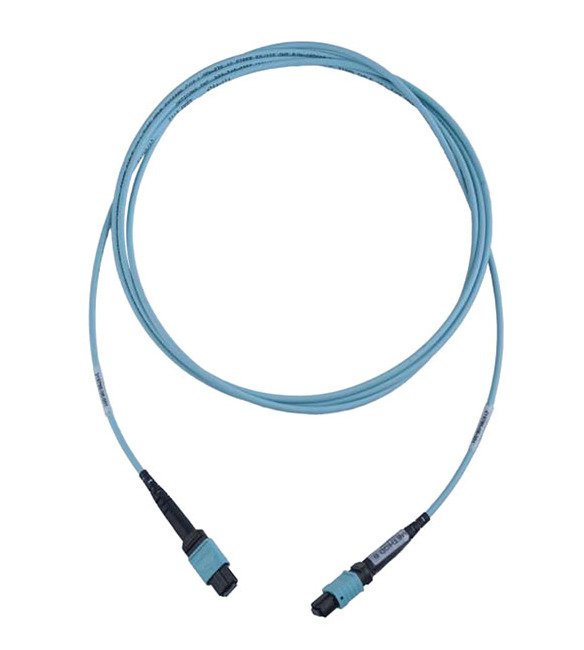

Xtreme8™ MTP® jumpers are used to cross connect MTP® trunks to active electronics, other MTP® trunks, or extend MTP® trunks. They feature 8 fiber, 3.0mm round plenum rated cable with internal aramid yarn strength members. Cables can be ordered pinned, non-pinned, or a combination of each. They are available in Low-Loss (LL) and Xtreme Low-Loss (XL) performances.Bend Insensitive fibers are standard in all Xtreme8™ MTP® jumpers.
Product Specifications
Connector Performance Low Loss Ll Insertion Loss For Om3 Om4 And
0.50 dB
Connector Performance Low Loss Ll Insertion Loss For Os2 Multimo
0.75 dB
Connector Performance Xtreme Low Loss Xl Insertion Loss For Om3
0.35 dB
Connector Performance Xtreme Low Loss Xl Insertion Loss For Os2
0.35 dB
Note
MTP® and MTP Elite® are registered trademarks of USConecMade in the USA.
Ordering Information Connector
Male Multi-Fiber Termination Push-On (MTP®)(M)/Male Multi-Fiber Termination Push-On (MTP®)(M) | Female Multi-Fiber Termination Push-On (MTP®)(F)/Female Multi-Fiber Termination Push-On (MTP®)(F) | Female Multi-Fiber Termination Push-On (MTP®)(F)/Male Multi-Fiber Termination Push-On (MTP®)(M) | Multi-Fiber Termination Push-On (MTP®) | Multi-Fiber Termination Push-On (MTP Elite®)
Ordering Information Fiber Type
OS2 | OM3 | OM4 | OM5
Ordering Information Length
Feet | Meters
Ordering Information Method
A | B | C
Ordering Information Performance
Low Loss (LL) | Xtreme Low Loss (XL)
