0.0050 in 17-7PH Stainless Steel, Annealed Temper
0.0050 in 17-7PH Stainless Steel, Annealed Temper
SKU:177-298923
Premium 0.0050 in 17-7PH Stainless Steel, Annealed Temper. ASTM-A-693 & AMS-5528 Compliant. High strength & durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
0.0050 in 17-7PH Stainless Steel, Annealed Temper
$59.99
Quantity: 1
Claim Your Seller Account
0.0050 in 17-7PH Stainless Steel, Annealed Temper
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 0.0050-inch thick 17-7PH Alloy Annealed Temper Stainless Steel offers unparalleled strength and durability. Compliant with ASTM-A-693 and AMS-5528 standards, this alloy boasts a minimum yield strength of 65 ksi, a maximum hardness of 92 Rockwell B, and a minimum tensile strength of 150 ksi. With precise composition including maximum 1.50% aluminum, 0.09% carbon, and 7.75% nickel, this stainless steel is ideal for demanding applications.
Product Specifications

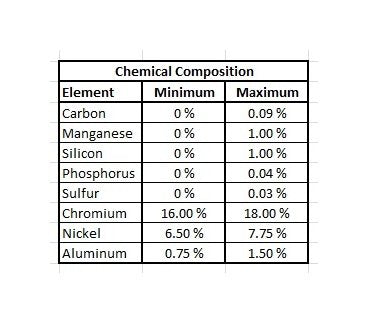

Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Maximum Hardness
92 Rockwell B
Physical Properties Minimum Elongation In 2 Inch In
20 %
Physical Properties Minimum Tensile Strength
150 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset 000
65 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset Ove
55 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
17-7PH Stainless Steel
Specifications Ams Standard
AMS-5528
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Annealed Temper
Specifications Thickness
0.0050 in
Specifications Thickness Tolerance
5 %
Specifications Width
Custom
