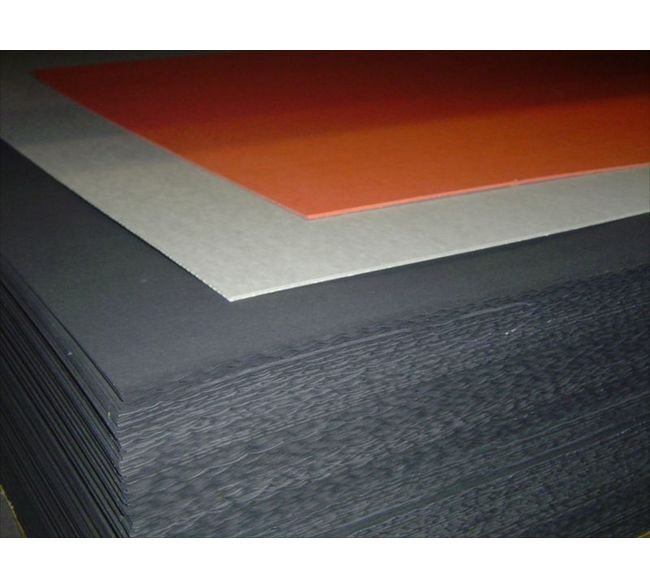

0.032" Black Fibre Sheet - Vulcanized Fibre for Industrial Use
0.032" Black Fibre Sheet - Vulcanized Fibre for Industrial Use
SKU:MAT-38dcaf
Durable 0.032" Black Fibre Sheet with superior strength and heat resistance, ideal for industrial applications.
Regular price
$7.91
Regular price
Sale price
$7.91
Unit price
per
Initiate Order
0.032" Black Fibre Sheet - Vulcanized Fibre for Industrial Use
$7.91
Quantity: 1
Claim Your Seller Account
0.032" Black Fibre Sheet - Vulcanized Fibre for Industrial Use
$7.91
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the durability and versatility of our 0.032" Black Fibre Sheet, made from chemically pure cellulose without any resin. This Vulcanized Fibre product offers superior mechanical strength, excellent heat/cold resistance, and half the weight of aluminum. Ideal for various applications including washers, insulation, motor components, and more. Compliant with ASTM D-710, Mil-F-1148, NEMA Grade standards, this Fibre Sheet meets rigorous industrial procurement requirements.
Product Specifications
Applications 0
Armature slot insulation, liners, washers, coil insulation, arc shields, formed specialties and gasket stock.
Continuous Heat Resistance Electrical
115 ºC
Continuous Heat Resistance High Ampere Arc Ignition
120 sec
Continuous Heat Resistance Hot Wire Ignition
60-119 sec
Continuous Heat Resistance Mechanical
110 ºC
Specifications Arc Resistance
125 sec
Specifications Bond Strength
900 psi
Specifications Bursting Strength
325 psi
Specifications Coefficient Of Friction Fibre On Fibre
0.16
Specifications Coefficient Of Friction Fibre On Smooth Cast Iron
0.21
Specifications Color
Black
Specifications Comparative Tracking Index
400 - 599 V
Specifications Compressive Strength
35000 psi
Specifications Density
1.20 gm/cc
Specifications Dielectric Strength
200 Volts/mil
Specifications Dimensional Change In Moisture Content Cd
0.25
Specifications Dimensional Change Per Percent Change Md
0.10 %
Specifications Dimensional Change Thickness
1.00 %
Specifications Dimensions
40 x 52 in
Specifications Flammability
0.5 in/min
Specifications Flammability Ul94
94HB
Specifications Flexural Strength Cd
16000 psi
Specifications Flexural Strength Md
29000 psi
Specifications Form
Sheet
Specifications Impact Strength Cd
2.0 ft.lbs/in
Specifications Impact Strength Md
2.5 ft.lbs/in
Specifications Modulus Of Elasticity In Flexural X 105 Cd
7
Specifications Modulus Of Elasticity In Flexural X 105 Md
10
Specifications Modulus Of Elasticity In Tension X 105 Cd
8
Specifications Modulus Of Elasticity In Tension X 105 Md
12
Specifications Pricepound 1000 Lbs
$5.27
Specifications Pricepound 100 199 Lbs
$7.03
Specifications Pricepound 13 49 Lbs
$8.78
Specifications Pricepound 200 499 Lbs
$6.15
Specifications Pricepound 500 999 Lbs
$5.71
Specifications Pricepound 50 99 Lbs
$7.91
Specifications Rockwell Hardness R Scale
70 divisions
Specifications Specific Heat
0.403 Btu/lb/ºF
Specifications Specific Volume
23.0 in³/lb
Specifications Tear Strength Cd
700 gm
