0.080 Inch (in) Thickness Tolerance Cell Cast Acrylic Sheet
0.080 Inch (in) Thickness Tolerance Cell Cast Acrylic Sheet
SKU:CEL-299a23
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
0.080 Inch (in) Thickness Tolerance Cell Cast Acrylic Sheet
$49.99
Quantity: 1
Claim Your Seller Account
0.080 Inch (in) Thickness Tolerance Cell Cast Acrylic Sheet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Most acrylic sheet is manufactured by either extrusion or cell casting. Cell cast is produced by pouring a liquid monomer into a eel! and then placing the cell in an autoclave. The benefits to cell casting are small minimums and a higher molecular weight. This method results in slightly better chemical resistance, heat resistance and clarity. The disadvantage to cell cast is that thickness tolerance within a sheet can vary more than other methods. Extruded sheets are produced by pushing the acrylic resin through a rectangular die that gives the sheet its shape.
Product Specifications
Additional Information

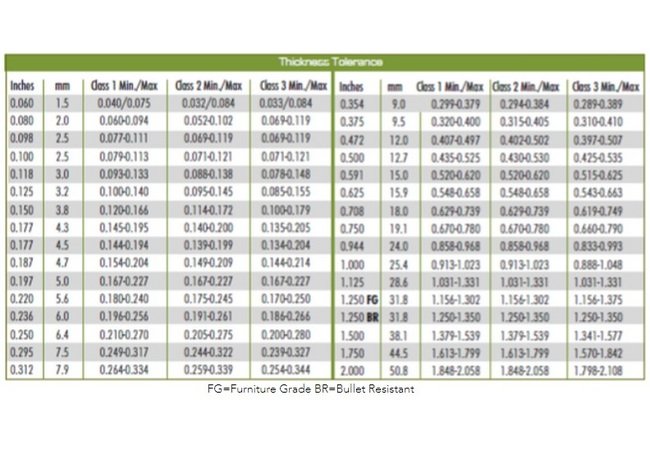

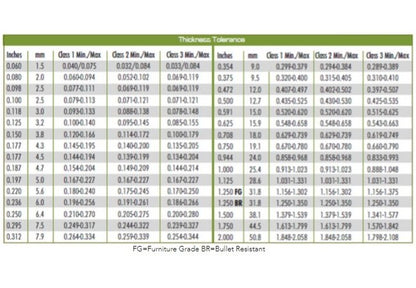

Extruded sheets are usually less expensive and offer the user less fluctuation in thickness across the sheet. Feel free to discuss your application with an E&T Plastics professional. We' I help you select the right product for your unique application.Cast tolerances are determined by sheet size. Larger sheets have greater variance across a sheet and smaller sheets will hold a tighter tolerance. We have assigned class 1, 2 and 3 to differentiate sheet sizes.
Specifications Class 1 Maximum Thickness Tolerance
0.094
Specifications Class 1 Minimum Thickness Tolerance
0.060
Specifications Class 1 Sheet Sizes
36 x 60, 40 x 50, 48 x 96 Sheets 0.236" & Thinner.
Specifications Class 2 Maximum Thickness Tolerance
0.102
Specifications Class 2 Minimum Thickness Tolerance
0.052
Specifications Class 2 Sheet Sizes
2 larger than size 1, including 48 x 84, 53 x 80, 60 x 72, 48 x 96. Sheets .250" & Thicker
Specifications Class 3 Maximum Thickness Tolerance
0.11
Specifications Class 3 Minimum Thickness Tolerance
0.06
Specifications Class 3 Sheet Sizes
3 larger than size 3.
Specifications Maximum Thickness Tolerance
0.088 in
Specifications Minimum Thickness Tolerance
0.072 in
Specifications Thickness Tolerance
0.080 in | 2.0 mm
