0.093 (in) Width Military Speciation (MS) Stainless Steel Strap Forks

Name: 0.093 (in) Width Military Speciation (MS) Stainless Steel Strap Forks
Brand: Carl Stahl Sava Industries
SKU: STR-5bb1dc
Price: 49.99 USD
Availability: OutOfStock

SKU:STR-5bb1dc

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

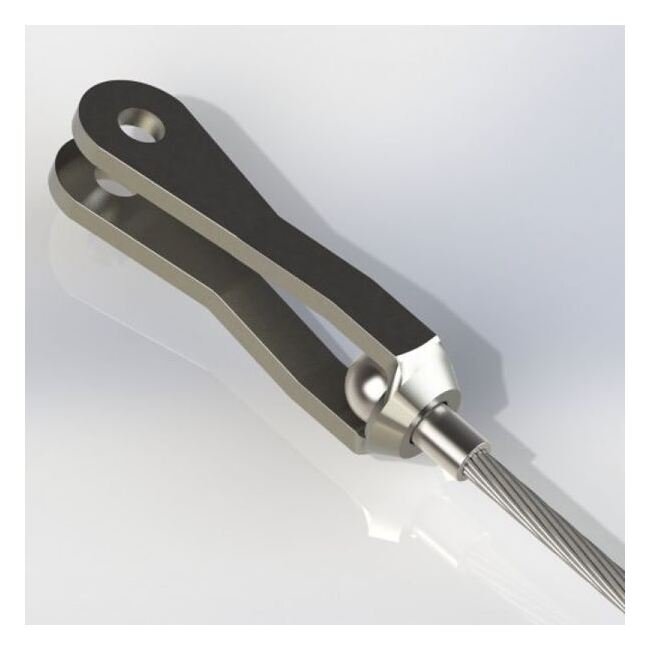

Strap Forks are used in combination with a ball and shank fitting to allow a cable assembly to swivel. Strap Forks are manufactured to standard NAS1435-K.

Product Specifications

Note

This product has a minimum quantity of 25.

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Grade

Military Speciation (MS)

Technical Specs Cable Material

Stainless Steel

Technical Specs Fitting

Strap Fork

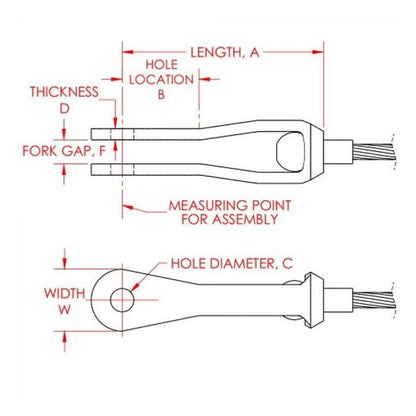

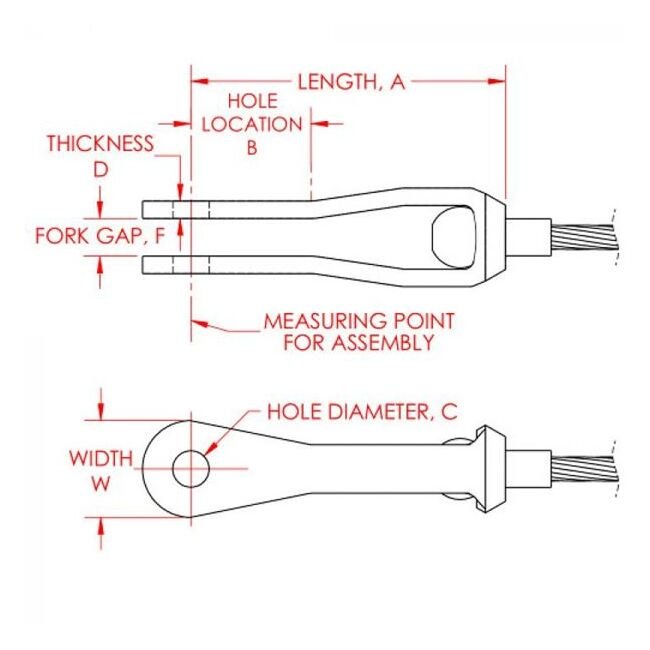

Technical Specs Fitting Length A

1.625 in

Technical Specs Fork Gap F

0.195 in

Technical Specs Hole Diameter C

0.188 in

Technical Specs Hole Location B

0.638 in

Technical Specs Maximum Mating Cable Diameter

0.125 in

Technical Specs Minimum Mating Cable Diameter

0.125 in

Technical Specs Part

SF4 NAS1435 K4

Technical Specs Thickness D

0.093 in

Technical Specs Width E

0.5 in

0.093 (in) Width Military Speciation (MS) Stainless Steel Strap Forks
