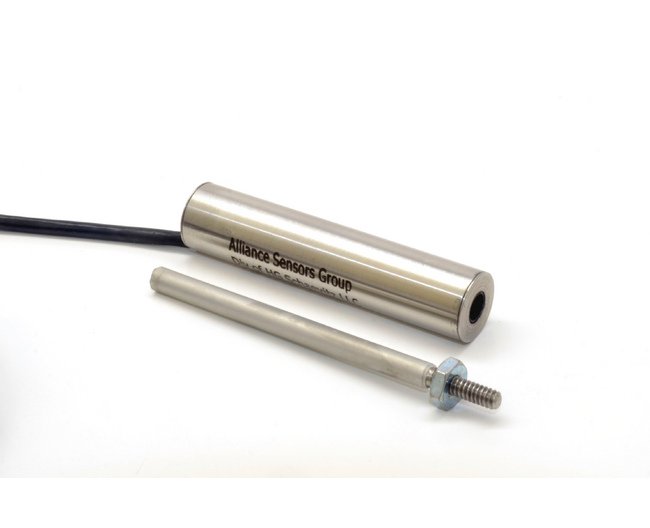

The 1/2 inch Outside Diameter Sensor by Alliance Sensors Group is a precision-engineered Linear Variable Differential Transformer (LVDT) and Potentiometer replacement sensor. It features a 0.100 inch stroke with 0 to 10 Volt output Direct Current (DC) Voltage. This sensor is designed for exceptional performance in a wide range of applications, providing high linearity (<0.25% of full scale) and excellent resolution (0.025% of full scale). With a durable stainless steel body and European Conformity (CE) approval, this sensor ensures reliability and accuracy even in harsh environments. Upgrade your systems with this versatile sensor for precise measurement and control.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
0.100 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.100 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
