0.100 Inch (in) Hole Size and 0.300 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet
0.100 Inch (in) Hole Size and 0.300 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet
SKU:CAB-e7ebbc
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
0.100 Inch (in) Hole Size and 0.300 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet
$49.99
Quantity: 1
Claim Your Seller Account
0.100 Inch (in) Hole Size and 0.300 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

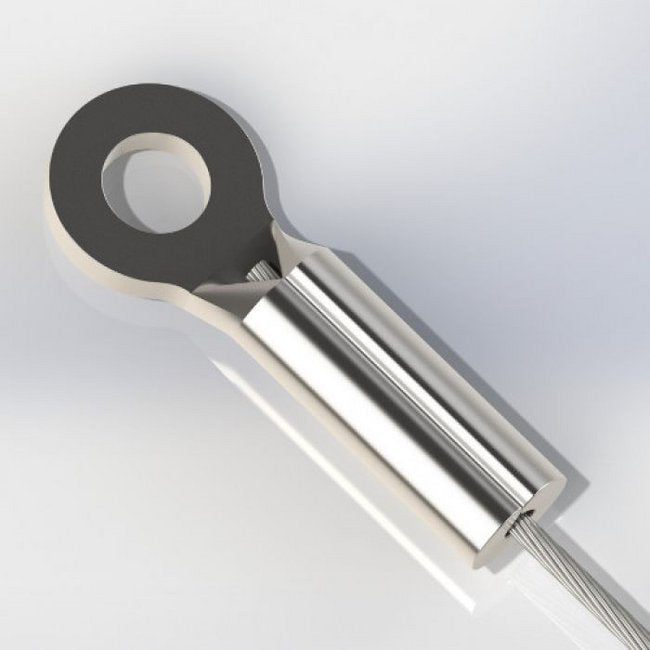

Eyelet fittings, used for mounting cable assemblies using screws, pins, rivets and bolts.
Product Specifications
Note
This product has a minimum quantity of 25.
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Grade
Commercial
Technical Specs Cable Material
Stainless Steel

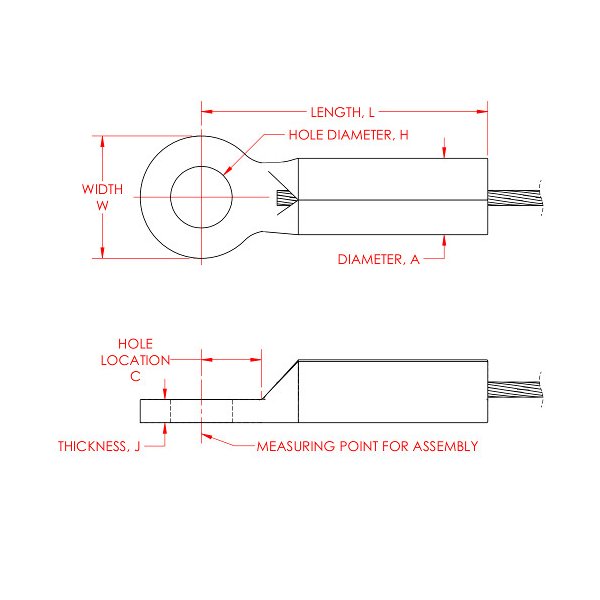

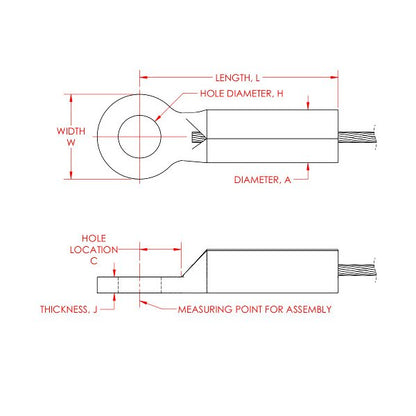

Technical Specs Diameter A
0.1 in
Technical Specs Fitting
Eyelet
Technical Specs Fitting Length L
0.300 in
Technical Specs Hole Location C
0.13 in
Technical Specs Hole Size
0.100 in
Technical Specs Material Specification
304
Technical Specs Maximum Mating Cable Diameter
0.034 in
Technical Specs Minimum Mating Cable Diameter
0.010 in
Technical Specs Part
302S100
Technical Specs Swage Length
0.300 in
Technical Specs Thickness J
0.03 in
Technical Specs Width W
0.190 in
