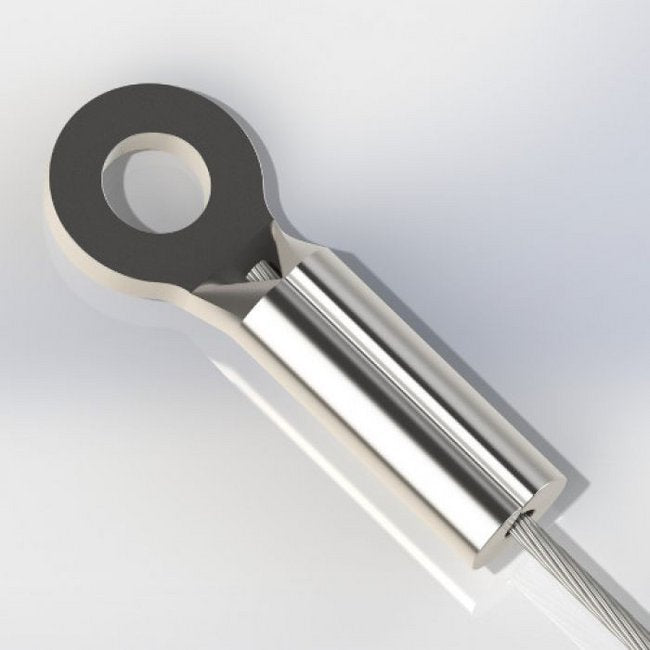

• 0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet - Image 1

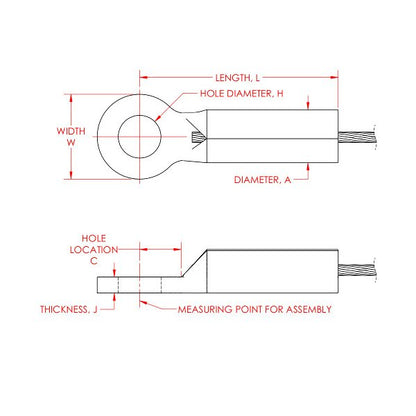

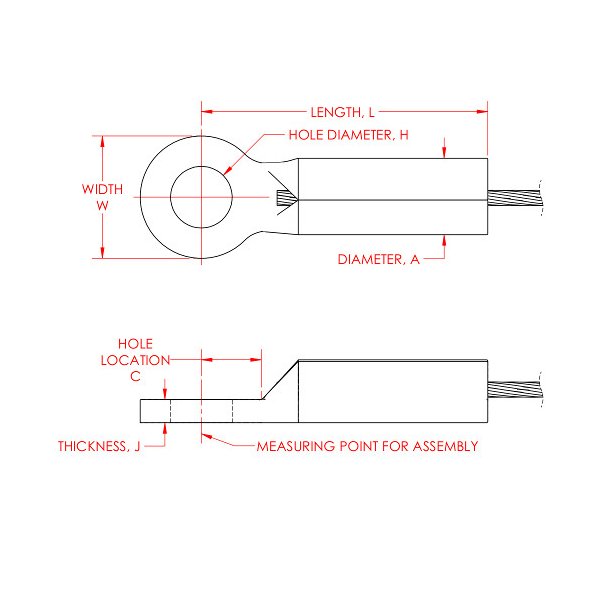

  • 0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet - Image 2
1 2
Carl Stahl Sava Industries →

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

CAB-db33e0

N/A

$49.99
$49.99
Sale

Initiate Order

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

$49.99

Quantity: 1

Claim Your Seller Account

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

0.172 Inch (in) Hole Size and 0.46 Inch (in) Fitting Length Commercial Stainless Steel Cable Eyelet

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Eyelet fittings, used for mounting cable assemblies using screws, pins, rivets and bolts.

Product Specifications

Note
This product has a minimum quantity of 25.
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Grade
Commercial
Technical Specs Cable Material
Stainless Steel
Technical Specs Diameter A
0.12 in
Technical Specs Fitting
Eyelet
Technical Specs Fitting Length L
0.460 in
Technical Specs Hole Location C
0.15 in
Technical Specs Hole Size
0.172 in
Technical Specs Maximum Mating Cable Diameter
0.044 in
Technical Specs Minimum Mating Cable Diameter
0.014 in
Technical Specs Part
305S171
Technical Specs Thickness J
0.040 in
Technical Specs Width W
0.26 in
