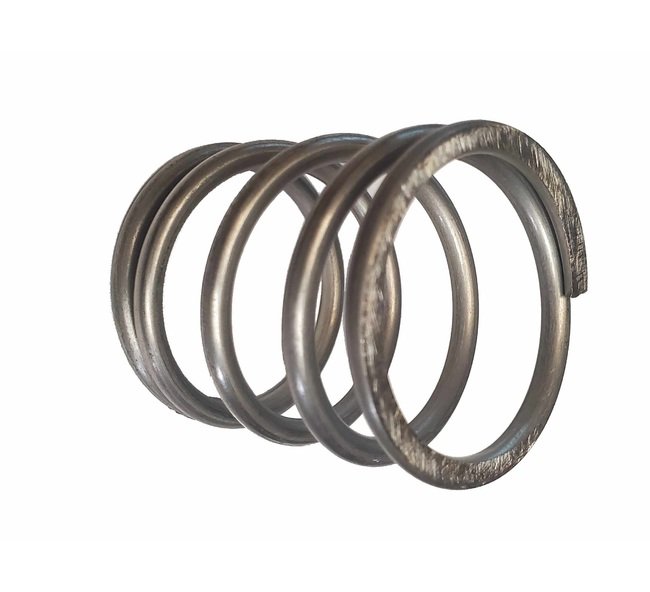

0.24 in Cadmium Plated Music Wire Mil-Spec Compression Spring

Name: 0.24 in Cadmium Plated Music Wire Mil-Spec Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: MIL-0523a4
Price: 15.99 USD
Availability: OutOfStock

SKU:MIL-0523a4

Precision-manufactured 0.24 in Cadmium Plated Music Wire Mil-Spec Compression Spring for loads up to 20 lbs. DFARS compliant and made in the USA.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet your compression spring needs with precision using our 0.24 in Outside Diameter, 0.022 in Wire Diameter, and 0.56 in Free Length Cadmium Plated Music Wire Mil-Spec Compression Spring. This spring offers a load of 2.394 lb, a spring rate of 7.5 lb/in, and complies with DFARS regulations, ensuring reliability and performance. Manufactured in the USA to MIL-STD standards AS24585 and MS24585, this spring is ideal for various applications requiring up to 20 lbs load capacity.

Product Specifications

Specifications Active Coils

4.5

Specifications Deflection

0.318 in

Specifications Deflection Per Coil Load

0.0706 in

Specifications Free Length

0.56 in

Specifications Load

2.394 lb

Specifications Material

Cadmium Plated Music Wire

Specifications Maximum Solid Height

0.143 in

Specifications Outside Diameter

0.24 in

Specifications Spring Rate

7.5 lb/in

Specifications Wire Diameter

0.022 in

0.24 in Cadmium Plated Music Wire Mil-Spec Compression Spring
