0.24 in Music Wire Compression Spring

Name: 0.24 in Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-dd37b2
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-dd37b2

High-quality 0.24 in Music Wire Compression Spring for reliable performance in compression applications.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

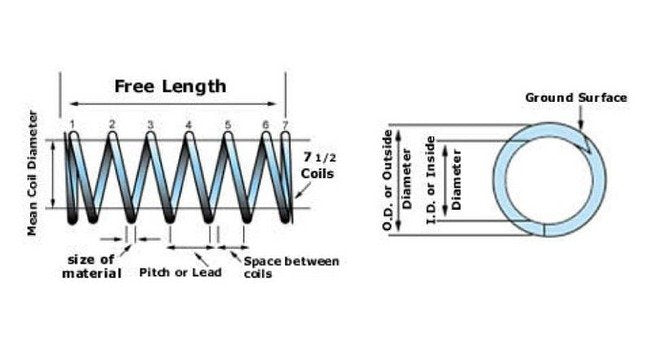

The 0.24 Inch Music Wire Compression Spring is designed for optimal performance in compression applications. Made from high-quality music wire, this spring offers a wire diameter of 0.014 inches and a free length of 0.875 inches. With a load capacity of 0.48 (MW) and 0.42 (SS), this spring provides reliable support with its 7.643 total coils. Its solid HT ensures durability, while the spring rate of 0.85 (MW) and 0.74 (SS) guarantees consistent performance. Perfect for various industrial and institutional uses, this compression spring offers precision and reliability in a compact design.

Product Specifications

Specifications Ends

FEO

Specifications Free Length

0.875

Specifications Length L1

0.31

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

0.48

Specifications Load Ss

0.42

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.121

Specifications Spring Rate Mw

0.85

Specifications Spring Rate Ss

0.74

Specifications Total Coils

7.643

Specifications Type

Compression

Specifications Wire Diameter

0.014

0.24 in Music Wire Compression Spring
