0.24 Inch Music Wire Compression Spring

Name: 0.24 Inch Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-204605
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-204605

High-quality 0.24 Inch Music Wire Compression Spring for reliable performance in varied applications.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

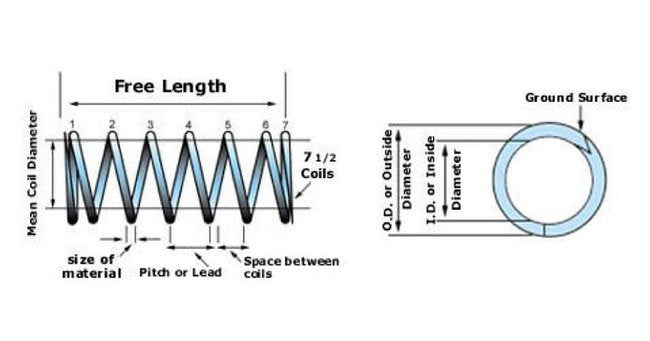

The 0.24 Inch Outside Diameter, 0.038 Inch Wire Diameter, and 2.25 Inch Free Length Music Wire Compression Spring is a reliable and durable solution for various applications. Made of high-quality music wire, this compression spring offers a spring rate of 13.22 (MW) and 11.33 (SS), ensuring optimal performance and longevity. With 29.5 total coils and ends designed for maximum efficiency (FEG), this spring provides a load capacity of 11.19 (MW) and 9.47 (SS) while maintaining a solid HT of 1.121. Ideal for industrial and institutional use, this compression spring is a versatile and cost-effective choice.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

2.250

Specifications Length L1

1.403

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

11.19

Specifications Load Ss

9.47

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

1.121

Specifications Spring Rate Mw

13.22

Specifications Spring Rate Ss

11.33

Specifications Total Coils

29.500

Specifications Type

Compression

Specifications Wire Diameter

0.038
