0.24" Music Wire Compression Spring

Name: 0.24" Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-5d1630
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-5d1630

High-quality 0.24" Music Wire Compression Spring for reliable compression performance.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

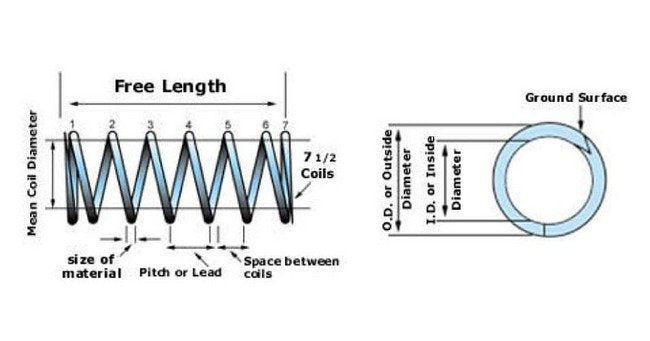

The 0.24 Inch (in) Outside Diameter, 0.029 Inch (in) Wire Diameter, and 0.375 Inch (in) Free Length Music Wire Compression Spring is a high-quality spring designed for optimal performance in compression applications. Made with durable music wire, this spring offers a reliable load capacity of 5.29 lbs at L1 (MW) and 4.5 lbs (SS). With a spring rate of 32.14 (MW) and 27.55 (SS), it ensures efficient compression and resilience. The spring's precise construction features FEG ends, 0.156" solid HT, and 5.379 total coils, providing consistent performance and longevity.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.375

Specifications Length L1

0.21

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

5.29

Specifications Load Ss

4.5

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.156

Specifications Spring Rate Mw

32.14

Specifications Spring Rate Ss

27.55

Specifications Total Coils

5.379

Specifications Type

Compression

Specifications Wire Diameter

0.029
