0.24" Music Wire Compression Spring

Name: 0.24" Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-8e0b75
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-8e0b75

Upgrade machinery with the 0.24" Music Wire Compression Spring. Optimal performance with precise dimensions. Ideal for industrial use.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

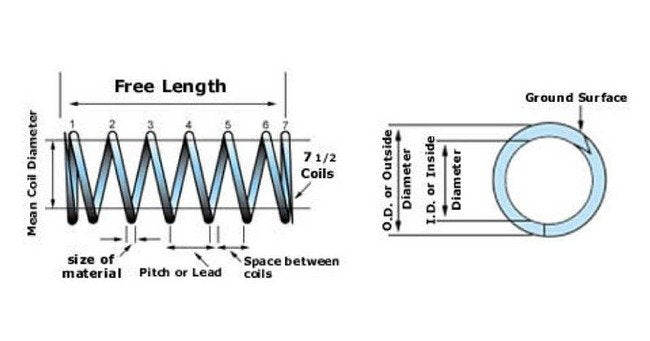

Enhance your industrial and commercial machinery with the 0.24-inch Music Wire Compression Spring. Crafted from high-quality music wire material, this spring boasts an outside diameter of 0.24 inches, wire diameter of 0.035 inches, and a free length of 1.125 inches. With a spring rate of 19.61 (MW) and 16.8 (SS), it provides optimal load support with a Load at L1 (MW) of 8.94 and Load (SS) of 7.58. Its FEG ends ensure secure attachment, and at a list price of 5.83 USD, this compression spring is a reliable and cost-effective choice for various applications.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

1.125

Specifications Length L1

0.669

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

8.94

Specifications Load Ss

7.58

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.517

Specifications Spring Rate Mw

19.61

Specifications Spring Rate Ss

16.8

Specifications Total Coils

14.771

Specifications Type

Compression

Specifications Wire Diameter

0.035
