0.24" Music Wire Compression Spring

Name: 0.24" Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-8e5a68
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-8e5a68

Durable 0.24" Music Wire Compression Spring for varied applications. Resilient and reliable component.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

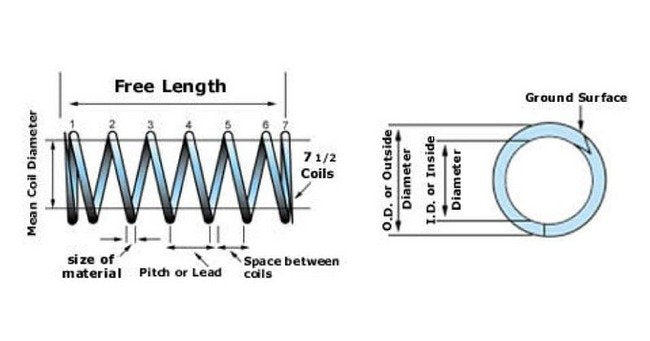

The 0.24 Inch Outside Diameter Music Wire Compression Spring is a durable and reliable component designed for varied applications. Made of high-quality music wire, it offers excellent resilience with an Outside Diameter of 0.24 inches, Wire Diameter of 0.038 inches, and Free Length of 1 inch. With a Spring Rate of 31.11 (MW) and 26.66 (SS), it provides consistent performance under pressure. This compression spring, featuring FEG ends, ensures optimal load distribution and longevity. Ideal for industrial and institutional use.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

1.000

Specifications Length L1

0.64

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

11.19

Specifications Load Ss

9.47

Specifications Material

Music Wire

Specifications Outside Diameter

0.24

Specifications Solid Ht

0.52

Specifications Spring Rate Mw

31.11

Specifications Spring Rate Ss

26.66

Specifications Total Coils

13.684

Specifications Type

Compression

Specifications Wire Diameter

0.038
