0.25 Decibel (dB) Maximum Insertion Loss OS-2 (Singlemode) Fiber Uniboot Polarity Switchable Patch Cord

Name: 0.25 Decibel (dB) Maximum Insertion Loss OS-2 (Singlemode) Fiber Uniboot Polarity Switchable Patch Cord
Brand: Opticonx
SKU: MUL-7e2ffc
Price: 49.99 USD
Availability: OutOfStock

SKU:MUL-7e2ffc

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

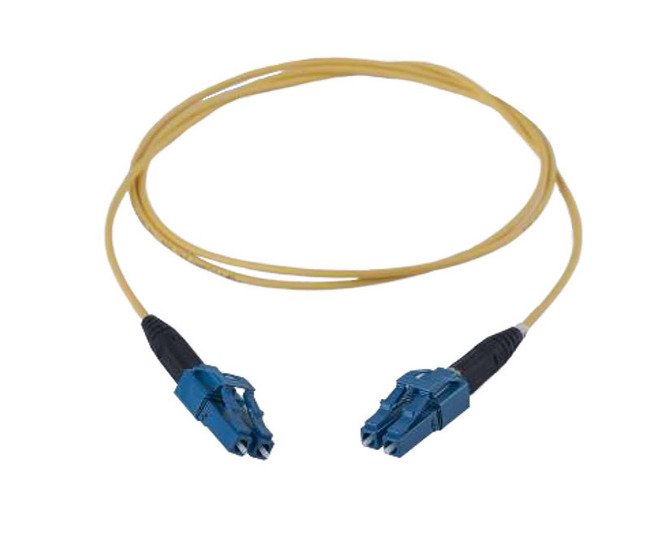

OS2, 2-fiber, Plenum Rated, A/B Polarity Bend Insensitive Fiber, Yellow Jacket, Blue Connector, (LC-UPC)

Product Specifications

Applications

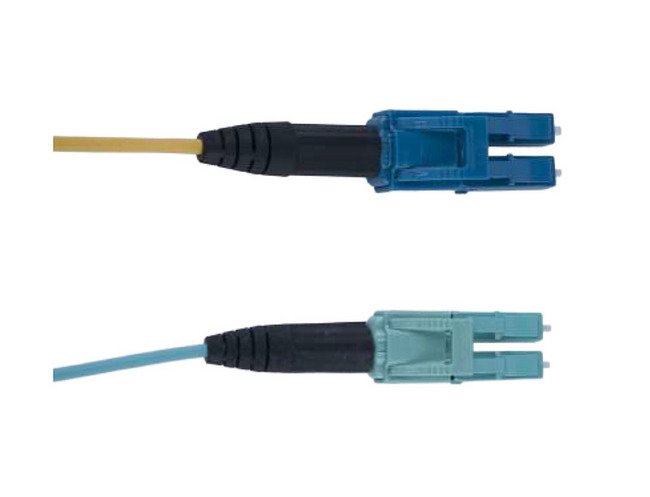

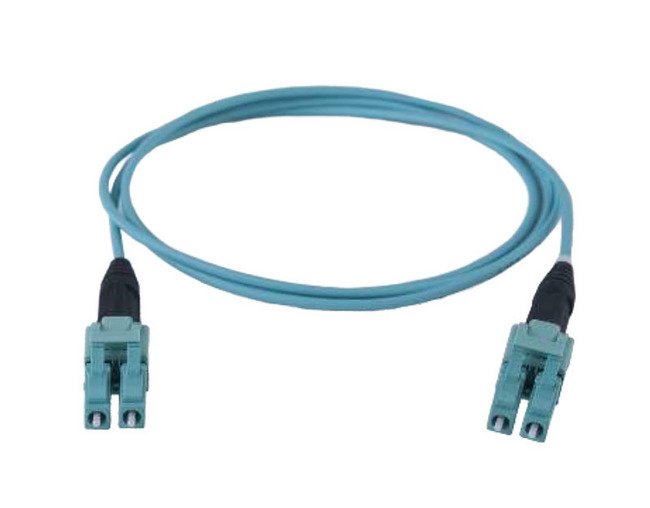

Opticonx Uniboot Polarity Switchable Patch Cords feature high density, small form factor LC connectors mated to 2.0 mm round duplex cable. They are used to connect switches or network devices in fiber networks directly or interconnect structured cabling systems in a fiber network. Polarity changes can be made in the field quickly, without the use of tools, to the correct fiber mapping polarity.

Connector Specifications Angled Physical Contact Apc Return Loss

> -65 dB

Connector Specifications Cable Retention

20 lb | 88 N

Connector Specifications Durability

500 Matings

Connector Specifications Maximum Insertion Loss

0.25 dB

Connector Specifications Operating Environment Temperature

- 40 to 75 ºC

Connector Specifications Performance

Xtreme Low Loss (XL)

Connector Specifications Repeatability

< 0.20 dB

Connector Specifications Ultra Physical Contact Upc Return Loss

> -55 dB

Features

True Uniboot (one boot) designEasily switch polarity (A/B, A/A) with out tools or damage to fiberEasily change pitch from standard 6.25 mm to LC mini 5.25 mm spacing with no toolsOptional push/pull tab for high density applications2.0 mini round cable designFlexible plenum rated jacket for all plenum and riser applicationsBend insensitive fiber on all Multimode fibers, optional for Single-mode fibers100% optical testing and reportingCustom lengths, jacket colors and labeling options

Physical Specifications Fiber Count

Physical Specifications Fiber Type

OS-2 (Singlemode) | Mini Round

Physical Specifications Installation Bend Radius

1.2 in | 3.0 cm

Physical Specifications Long Term Bend Radius

0.80 in | 2.2 cm

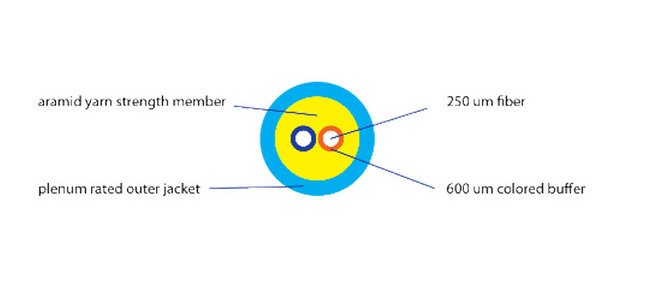

Physical Specifications Nominal Diameter

0.08 in | 2.0 mm

Physical Specifications Operatinginstallation Temperature

0 to 70 ºC

Physical Specifications Pull Strength

100 kg/km | 30 kg/km

Physical Specifications Pull Strength Per 1000 Feet Ft

22 lb | 7 lb

Physical Specifications Storage Temperature

-40 to 75 ºC

Physical Specifications Weight

7 kg/km

Physical Specifications Weight Per 1000 Feet Ft

5 lb

Specifications Country Of Origin

United States

Specifications Specifications

Multimode patch cords shall have an optical return loss of -25 dB or better per mated pair, and single mode shall have an optical return loss of -55 dB or better for UPC polish. Insertion loss shall not exceed 0.15 dB permated pair for multimode Xtreme Low Loss(XL) and 0.25 for Low Loss(LL) Performance. Insertion loss for single-mode shall not exceed 0.25 dB for Xtreme Low Loss(XL) and 0.35 for Low Loss(LL) performance. All patch cords shall be compliant with ANSI/TIA-568-C.3.

Specifications Standards Compliance

Designed to Meet the Requirements of ANSI/TIA-568-c.3

Transmission Specifications Maximum Attenuation For 1310 Nanomet

0.4 dB/km

Transmission Specifications Maximum Attenuation For 1550 Nanomet

0.4 dB/km

Transmission Specifications Transmission Distance For 100 Megaby

5,000 m

Transmission Specifications Transmission Distance For 10 Gigabyt

5,000 m

Transmission Specifications Transmission Distance For 1 Gigabyte

5,000 m
